Solar Connector Waterproof Connector 2.5mm2 4.0mm2 6.0mm2
| US$0.23-0.28 | 500 Pieces (MOQ) |
Basic Info.
Certification
CE
Application
Home, Industrial, Commercial, Solar Energy System
Contact Resistance
3.8mΩ
Contact Material
Copper
Surface Treatment
Silver Plated
Housing
PPO
Rated Current
30A
Rated Voltage
DC 1000V
Test Voltage
8000V (50Hz .1min)
Insulation Material
PPO
Degree of Protection
IP67
Flame Class
UL94-Vo
Safety Class
II
Suitable Cable
2.5/4/6mm2 (14/12/10AWG)
Temperature Range
-40~+125
Connecting System
Crimp Connection
Transport Package
Conventional Export Packaging
Specification
250Pair/Boxes
Trademark
WZAZURE/OEM
Origin
Zhejiang, China
HS Code
8536690000
Production Capacity
10000 Piece/Pieces Per Week
Product Description
Solar connector waterproof connector 2.5mm2 4.0mm2 6.0mm2This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations. Raygleam MC4Compatible Cable Connectors are made with highest quality materials. They are both heavier and sturdier than many other brands,ensuring long term reliability and performance. These connectors are designed to complete a solar panel (PV) array, typically in parallel applications. These connectors are also waterproof and resist dust build up.
Technical parameters
| Product Name | MC4 Connector |
| Rated Current | 30A(2.5~6mm2) |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50HZ, 1min) |
| Overvoltage category/Pollution degree | CAT III/2 |
| Contact resistence of plug connectors | 1 mΩ |
| Conatct material | Copper, Ag plated |
| Insulation material | PPO |
| Degree of protection | IP20/IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Suitable cable | 2.5-6mm2 |
| Insertion force/Withdrawal force | ≤50N/ ≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40ºC~+125ºC |

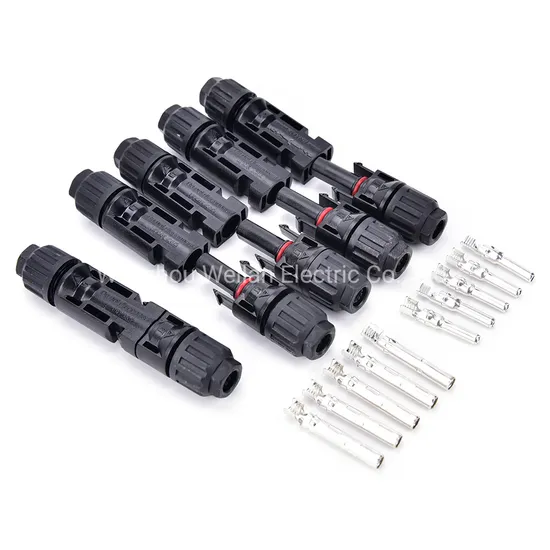

Product Display
Any requirements or question,welcome to "Send" us an e-mail Now!!!
