US$16,500.00-17,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Chemical, Daily Chemical, Pharmaceutical, Cosmetics, Medical, Ect
Control System
Button Control
Cooling Method
Water Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Drum Shape
Flat-Bottomed Cylinder
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Temperature Control
With Heating
Homogenizing Speed
0-2880rpm
Structure
3 Tank (Emulsifying Tank, Water Tank, Oil Tank )
Function
Mixer/Heating/Homogenzier
Discharging Way
Bottom Side Valve, at The Same Plane with The Bot
Stirrer Paddle & Scraper Blade
Frame Wall Scrapping Mixing
Transport Package
Wood Packing
Specification
2500*1500*2500mm
Production Capacity
45sets/Month
Product Description
Product DescriptionFacial Cream Processing Line Cosmetic Mixing Stainless Reactor Agitator Aloe Vera Gel Production Making Machine

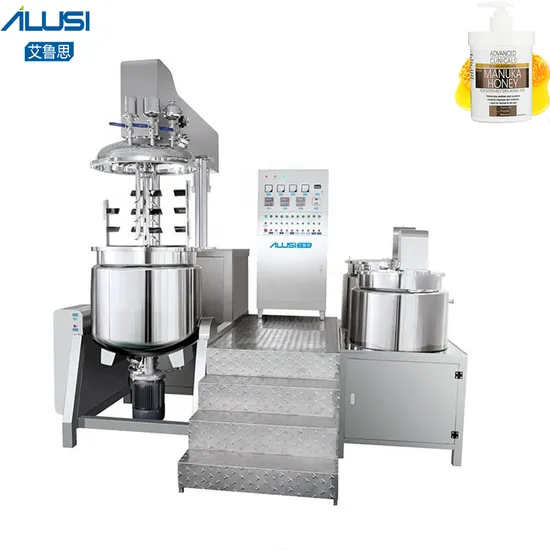

Vacuum homogenizer emulsifying machine is a complete system integrating mixing, dispersing, homogenizing, emulsification and powder absorption function. It has a built-in electronic control system. What's more, it is equipped with oil tank,water tank, vacuum system, heating system, cooling system. It is special equipment for producing cosmetic cream, cosmetic lotion,medicinal ointment, etc. It is applicable for various industries, such as pharmaceuticals, chemical, cosmetic, daily care and food industry.
Product Parameters
No | Model | AVE-200 |
1 | Working capacity | 200L |
2 | Heating method | Steam/electric |
3 | Mixing type | Upper frame oar scrape mixer |
4 | Mixing motor power | 3KW |
5 | Mixing frequency | 3KW |
6 | Mixing Speed | 0-62rpm |
7 | Homogenizer | Bottom homogenizer with frequency inverter |
8 | Bottom Homogenizer power | 5.5KW |
9 | Speed | 0-2880rpm |
10 | Hydraulic lifting system | 1.5KW |
11 | Vacuum pump | Water cycle vacuum pump, power: 1.5KW |
12 | Control method | Button control/ HMI |
13 | Frequency converter | Delta/Panasonic/Mitsubishi |
14 | Electrical components | Schneider/Delixi |
15 | Jacket | Double jacket,3 layers |
16 | Tank materials | Inner layer 5mm/SUS316 Middle layer 5mm/SUS304 Outer layer 3mm/SUS304 |
Machine detailsVacuum emulsifier main pot
Main pot hydraulic lifting, three layers of stainless steel structure, can be manually tipped out. Equipped with material inlet, vacuum gauge, vacuum valve, view mirror, air filter, perfume hopper and so on.
Blender
Type: frame oar scrape blender,single way or double way rotating
Material: SUS316L
Speed:0-65rpmElectric control system
Electric control cabinet buttons control or PLC touch screen controller design.
adopt SUS304 Stainless steel plate, thickness:1.5mm
Frequency inverter Delta
Indicator light Schneider
Water & Oil heating
Water pot Working volume: 45L
Oil pot Working volume: 30L
Mixing speed: 1440rpm
Pre heating and mixing
