Heat resistant blower kitchen use smoke vacuum fan fume extractor for barbecue

Product Details

Product Description

Product Description
Product Description

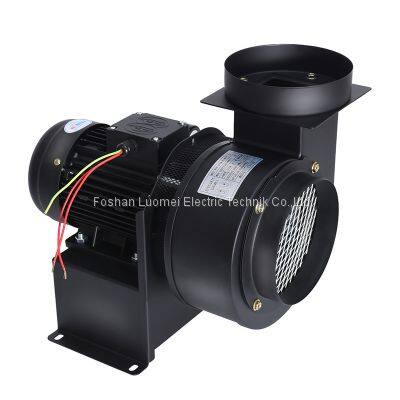

Low noise 200 degree heat resistant small size silent metal centrifugal fan

Model	Power	Voltage	Airflow	Pressure	Rotation	Inlet/Outlet	Weight	Noise	Dimension
CY063	13W	220V/380V	30m3/h	68Pa	2800RPM	50*50mm	0.62KG	40db	100*100*100mm
CY076	25W	220V/380V	96m3/h	127Pa	2800RPM	75/75mm	2KG	43db	200*150*190mm
CY100	45W	220V/380V	132m3/h	177Pa	2800RPM	75/100mm	2.3KG	45db	200*210*200mm
CY127	50W	220V/380V	198m3/h	299Pa	2800RPM	75/125mm	3.5KG	45db	200*210*230mm
CY120	120W	220V/380V	408m3/h	384Pa	2800RPM	100/100mm	4.3KG	51db	285*230*255mm
CY125	200W	220V/380V	570m3/h	451Pa	2800RPM	125/125mm	6KG	51db	285*240*290mm
KL250	250W	220V/380V	642m3/h	498Pa	2800RPM	100/125mm	7KG	60db	315*240*270mm
CY150	370W	220V/380V	750m3/h	568Pa	2800RPM	150/150mm	12KG	70db	390*280*360mm
CY180	750W	220V/380V	1080m3/h	941Pa	2800RPM	150/150mm	18KG	88db	390*340*395mm
CY200	1500W	380V	2640m3/h	2950Pa	2800RPM	200/200mm	22KG	88db	475*390*410mm

Note: model CY063 is not heat resistant.
Application: barbecue oven, boiler, exhaust hot gas, hot smoke, ventilation, equipment matching, hot blast stove, industrial
CY-063, 13W, 50/60HZ, 1/3phase, 220V or 380V, airflow 30m3/h , pressure 68Pa, inlet/outlet diameter 50/50mm, 0.62kg, 100*100*100mm.
CY-076, 25W, 50/60HZ, 1/3phase, 220V or 380V, airflow 96m3/h , pressure 127Pa, inlet/outlet diameter 75/75mm, 2kg, 200*150*190mm.
CY-100, 45W, 50/60HZ, 1/3phase, 220V or 380V, airflow 132m3/h , pressure 177Pa, inlet/outlet diameter 75/100mm, 2.3kg, 200*210*200mm.
CY-127, 50W, 50/60HZ, 1/3phase, 220V or 380V, airflow 198m3/h , pressure 299Pa, inlet/outlet diameter 75/125mm, 3.5kg, 200*210*230mm.
CY-120, 120W, 50/60HZ, 1/3phase, 220V or 380V, airflow 408m3/h , pressure 384Pa, inlet/outlet diameter 100/100mm, 4.3kg, 285*230*255mm.
CY-125, 200W, 50/60HZ, 1/3phase, 220V or 380V, airflow 570m3/h , pressure 451Pa, inlet/outlet diameter 125/125mm, 6kg, 285*240*290mm.
KL-250, 250W, 50/60HZ, 1/3phase, 220V or 380V, airflow 642m3/h , pressure 498Pa, inlet/outlet diameter 100/125mm, 7kg, 315*240*270mm.
CY-150, 370W, 50/60HZ, 1/3phase, 220V or 380V, airflow 750m3/h , pressure 568Pa, inlet/outlet diameter 150/150mm, 12kg, 390*280*360mm.
CY-180, 750W, 50/60HZ, 1/3phase, 220V or 380V, airflow 1080m3/h , pressure 941Pa, inlet/outlet diameter 150/150mm, 18kg, 390*340*395mm.
CY-200, 1500W, 50/60HZ, 3phase, 380V, airflow 2640m3/h , pressure 2950Pa, inlet/outlet diameter 200/200mm, 22kg, 475*390*410mm.
