CNC / Nc Hydraulic Press Brake Machine, Sheet Metal Folding Bending Machine with High Quality & Good Price

Product Description

CNC / NC Hydraulic Press Brake Machine, sheet metal folding bending machine with High Quality & Good Price

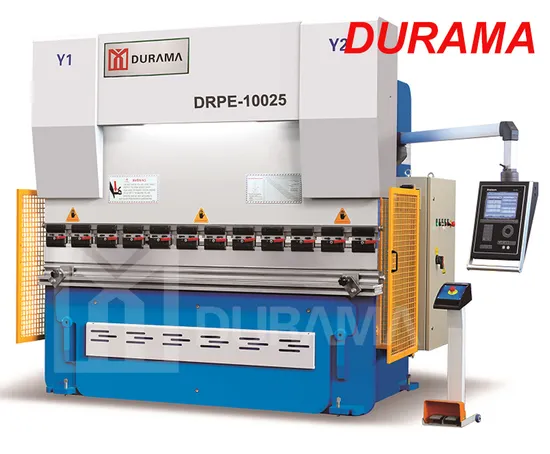

DURAMA Electrohydraulic Synchronous CNC Press Brake DRPE-Series (WE67K-Series )
The model of this synchro hydraulic cnc press brake / bending machine is DRPE-series,with DA52s CNC,Holland Delem DA56s CNC together with linear encoder,Bosch-Rexroth valves,servo motors and other famous brand elements to ensure excellent performance.
Basic features for delem DA52s synchro cnc press brake
• Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
• Holland Delem DA52s CNC together with linear encoder,Bosch-Rexroth valves,servo motors and other famous brand elements to ensure excellent performance
• Quick clamps is for easy operation of removing and changing upper punch tools
• Nylon material is used for front support to avoid scractch of sheets and improve the bending process
• Ram stroke (Y1,Y2) and backgauge (X,R,Z) are controlled by CNC
• Backgauge installed with ball screw and linear guide rail,ensuring high accuracy of repetition
• Stop fingers is sliding on linear rail for easy adjustment and high efficiency
• Multi-axis CNC controlled synchronous press brake available as metal sheet fabricating center
Optional elements for delem DA52s synchro cnc press brake
• Laser curtain of FIESSLER brand/ Laser curtain of LNTECH brand for personal saftey, especially to protect the fingers
•Customized specially tools for users' individul production
•CNC control :DELEM DA65W, DA66T, DA69, DA58...
Technical Parameters:

Model	Nominal Pressure (KN)	Length of Table (mm)	Distance between Housings (mm)	Throat Depth (mm)	Stroke (mm)	Strokes (min-1)	Open Height (mm)	Main Motor (kw)	Weight (kg)	Overall Dimensions L×W×H (mm)
MODELO	Presión (KN)	Longitud mesa de trabajo (mm)	Distancia entre montantes (mm)	Cuello (mm)	Golpe (mm)	Veces (min-1)	altura de apertura (mm)	Potencia Motor (kw)	Peso (kg)	Dimensiones totales L×W×H(mm)
DRP-40/22	400	2200	1850	250	100	≥11	340	5.5	2,850		2260×1200×1900
DRP-40/25	400	2500	2055	250	100	≥11	340	5.5	3,500		2560×1200×1920
DRP-63/20	630	2000	1650	250	100	≥10	335	5.5	4,200		2160×1725×2200
DRP-63/25	630	2500	2050	250	100	≥10	335	5.5	4,800		2605×1725×2200
DRP-63/32	630	3200	2670	250	100	≥10	335	5.5	5,850		3300×1725×2355
DRP-63/40	630	4000	3300	250	100	≥10	350	5.5	6,500		4000×1725×2405
DRP-80/25	800	2500	2050	250	100	≥10	335	7.5	5,500		2605×1725×2355
DRP-80/32	800	3200	2660	250	100	≥10	335	7.5	6,500		3300×1725×2405
DRP-100/25	1000	2500	1950	320	140	≥8	385	7.5	6,500		2560×1320×2510
DRP-100/32	1000	3200	2650	320	140	≥8	385	7.5	8,000		3260×1320×2510
DRP-100/36	1000	3600	3000	320	140	≥8	385	7.5	8,500		3660×1320×2510
DRP-100/40	1000	4000	3200	320	140	≥8	385	7.5	9,000		4060×1320×2760
DRP-100/50	1000	5000	4200	320	150	≥8	420	7.5	11,000		5100×1740×2800
DRP-125/32	1250	3200	2680	320	150	≥8	370	7.5	8,500		3280×1820×2430
DRP-125/40	1250	4000	3280	320	150	≥8	370	7.5	10,000		4080×1825×2430
DRP-160/32	1600	3200	2640	320	200	≥6	470	11	11,500		3270×1625×2665
DRP-160/40	1600	4000	3300	320	200	≥6	470	11	12,500		4070×1625×2765
DRP-160/50	1600	5000	4100	320	200	≥6	470	11	15,000		5080×1930×3160
DRP-200/32	2000	3200	2800	320	200	≥3	465	11	13,000		3280×1930×2800
DRP-200/40	2000	4000	3300	320	200	≥3	485	11	15,200		4060×1750×2950
DRP-200/45	2000	4500	3300	320	200	≥3	465	11	18,000		4580×1930×2800
DRP-200/50	2000	5000	4100	320	200	≥3	465	11	21,000		5080×1930×3160
DRP-250/32	2500	3200	2620	400	250	≥3	560	18.5	18,000		3380×2000×3260
DRP-250/40	2500	4000	3200	400	250	≥3	560	18.5	20,500		4070×2000×3260
DRP-300/40	3000	4000	3190	400	245	≥3	560	18.5	29,000		4000×2035×3110

Company Information:
We are DURAMA group company, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA group company supplies the most comprehensive range of machines and spare parts available today.
With continued investment and an unrivaled reputation for quality and service, DURAMA group company is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.
DURAMA group company is always trying best to supply durable machines and spare parts, and timeproof service to our customers.
Our Services:
1.Pre-sales:help client select the suitable machine
2.After-sales:provide free technical guidance
3.Installation service:we dispatch technician to customer's factory for installation
4.Training service:offer training of how to use our machines
5.Quality guarantee:machine warranty is 3 years, We offer flexible extended warranties if needed.
6.we arrange final test before shipment
7.Other services :
1): response within 1 hours
2): provide solution in 1 day
3): solve complaint in 2 days
Packaging and Shipping:
Standard Exporting Packaging for DURAMA press brake Machine
1.inner machine, it is packaged in moistureproof film.
2.pallet or wood box.
3.ground fixed bolt to confirm steady and avoid destory.
4.tightly exporting standard belf to fasten machine in container.
How to reach our factory: Our factory is about 260 km far away from Shanghai air port, and 8 km far away from Nanjing air port . You can come here by fast train or by plane to Nanjing. We will pick you up from the train station or air port.
If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!
