Washable Fabric Air Bag F6 F7 F8 F9 Bag Pocket Dust Fiberglass Filter

Product Description

Product DescriptionWashable Fabric Air Bag F6 F7 F8 F9 Bag Pocket Dust Fiberglass Filter
This mainly includes F5, F6, F7, and F8 medium-efficiency bag filters, which can be used for intermediate filtration in air conditioning systems.
The frame is primarily made of aluminum alloy or galvanized plate, with a thickness of 21mm or 25mm.

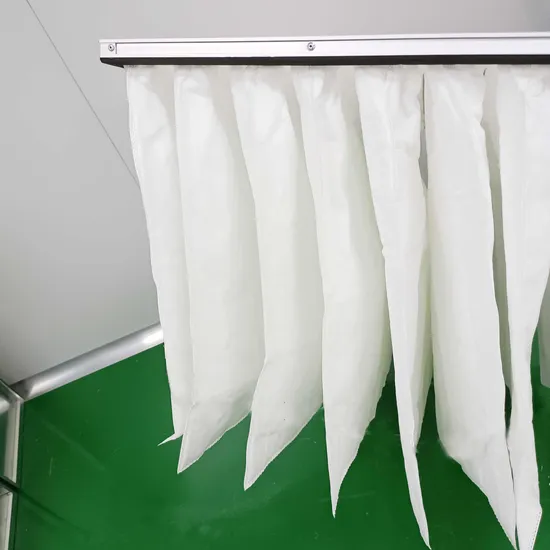

The filter material is melt-blown synthetic fiber, with a V-shaped bag structure.
The inner frame consists of galvanized inner strips and galvanized pressure bars.
The 'bag support grid' provides reinforcement to prevent the filter from collapsing or deforming in poor working conditions, and a good hot melt technology prevents excessive compression or leakage between bags.

Nominal Size inches	Actual Size mm	Bags Number	Filter Areas m²	Rated Airflow m/s	Initial Pressure Pa	Final Pressure Pa	Filter Object um	Filtration class
12*24*21	287*592*550	3	2.12	1700	65	250	≥0.5	F5(45%)
24*24*21	592*592*550	5	3.25	2800	60	250	≥0.5	F5(45%)
24*24*24	592*592*600	6	4.28	3400	60	250	≥0.5	F5(45%)
12*24*21	287*592*550	3	2.12	1700	75	300	≥0.5	F6(65%)
24*24*21	592*592*550	6	3.86	2800	70	300	≥0.5	F6(65%)
24*24*24	592*592*600	8	5.68	3400	70	300	≥0.5	F6(65%)
12*24*21	287*592*550	3	2.12	1700	105	400	≥0.5	F7(85%)
24*24*21	592*592*550	6	3.86	2800	100	400	≥0.5	F7(85%)
24*24*24	592*592*600	8	5.68	3400	100	400	≥0.5	F7(85%)
12*24*21	287*592*550	3	2.12	1700	125	450	≥0.5	F8(95%)
24*24*21	592*592*550	6	3.86	2800	120	450	≥0.5	F8(95%)
24*24*24	592*592*600	8	5.68	3400	120	450	≥0.5	F8(95%)
12*24*21	287*592*550	3	2.12	1700	140	450	≥0.5	F9(98%)
24*24*21	592*592*550	6	3.86	2800	130	450	≥0.5	F9(98%)
24*24*24	592*592*600	8	5.68	3400	130	450	≥0.5	F9(98%)

Product FeaturesConvenient and fast, significantly reducing operational costs. Both the frame and support structure can be reused, and filter bags can be replaced. Large filtration area, high dust-holding capacity, low resistance, and high airflow.

Frame	Aluminium alloy /Galvanized steel/Stainless steel
Media	synthetic fiber
Structure	Bag or Pocket
Dimension	According to customers' requirements
Fiber class according to EN779	F7 ( particles ≥0.5microns )
Certification	ISO9001, En779

Production TechnologyFree workshop, with its own primary, medium and efficient production workshop, and its own warehouse, standard size stock storage
APPLIATION:
Medium-efficiency bag filters can be used in humid environments with high airflow and high dust load.
1. Air conditioning system intermediate filter AND data center room.
2. Suitable for media filtration in industries such as automobiles, electronics, precision machinery, instruments, machinery, food, and general air conditioning ventilation systems.
Company ProfileEstablished in 2007, Zhengzhou Ailin Technology Co., Ltd (also known as Henan Yifan Filter Co., Ltd) specializes in the manufacturing of high-quality air purification and filtration products with a global reach. Our company spans over 3000 square meters and employs 50 staff members, including 11 research technicians.
Our Mission:
At AILIN or YIFAN, our mission is to deliver the highest quality products at the most competitive prices, ensuring an unparalleled customer experience with a win-win approach.
Getting to Our Factory:
• By High-Speed Rail: To Zhengzhou (Trading company by Ailin) or Xinxiang (Manufacturing company by Yifan) in Henan province.
• By Airplane: To Zhengzhou Xinzheng International Airport in Henan province.
Our main products include:
G-level pre-filters, F-level medium bag/pocket filters, H-level HEPA filters, and U-level ULPA filters, as well as various types of high-temperature air filters, oil filters, and water filters.
Our products are SGS and ISO9001 certified and have been exported to Europe, North America, Southeast Asia, Africa, and other regions. Our commitment to quality and after-sales service has earned us a strong reputation in the machinery industry.
WHY CHOOSE US ?
We really hope that customers can ask more questions, and then help customers solve all aspects of the problem
1. We use the highest quality raw materials to ensure the durability and reliability of our product.
2. Our design team continuously searches market demands to provide you with unique and practical designs.
3. We ensure competitive prices while maintain high quality for your satisfication
4. We value your needs and strive to ensure prompt delivery of our products to your hands.
5. We offer customization services to meet your unique requirements and preference.
6. Our team posenses extensive industry experience ready to provide you with professional advice and support. Warehouse Display
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company?A1: We are factory with rich experience in China, and our company has established since 2007.
Q2: Can the product be customized?
A2: Yes, both the product and the packaging can be customized.
Q3: Do you provide samples?A3: Yes, free sample can be provided but customer needs to pay for the shipping costs.
Q4: How to pay?
Our company accepts various ways of payment, such as T/T , L/C etc.
Q5: How long is the delivery time?
A5: It depends on the order quantity. Usually it takes about 15 to 30 working days after receiving your deposit.
Q6: Do you arrange the shipment?
A6: Yes, our company can arrange the shipment to deliver the goods according to the client's customer's requirements.
Q7: What about the after-sales service?
A7:Our company is responsible for the supplied product ONLINE
