High Quality River Sand Ball Mill for Industrial Use

Product Description

Product Description
The company is one of the world's largest grinding equipment R & D and manufacturing enterprises, with the best domestic grinding mill design team and process technology, with first-class production equipment, our company has formed a complete mill experiment, test, measurement and service supply system, With advanced technology has the ability to manufacture ball mill, rod mill, cement mill, bearing mill, bushing mill, overflow mill, lattice mill, air coal mill
Ball mill is a kind of grinding machine used to grind the crushed materials into extremely fine power, this series ball mill is mainly applied for industrial and mining enterprise such as Mining Ore Gold Copper Lead Manganese Iron Slag Sliver Aluminum Limestone Gypsum Powder ,metallurgy, building materials, chemical and other grindable materials, it can be used for wet and dry milling, open circuit grinding, also for the circle grinding with power feeder. This machine has it's own advantage of rational design, strong adaptability to raw materials, running fast, high crushing ratio, large capacity and easy to operate.
Wet grinding ball mill working principle:
The electro motor drives the cylinder to rotate through the reducer, and the broken ore and the steel balls inside the cylinder are brought by the lining board to a certain height under the frictional force and eccentric force produced by the rotation of the cylinder. Due to the action of gravity, the ores will drop and are gradually crushed under the impacting and grinding effect and the crushed ores will be discharged out of the cylinder through the discharging part. The discharged ores are classified by the spiral classifier, and the coarse sand will go back to ball mill from the joint feeding machine to be ground again. The feeding machine continuously and evenly feeds materials, and the ores will continuously and evenly go into the ball mill through the joint feeding machine, and the ground materials will be continuously discharged from Chinaware ball mill. For this reason, ball mill is a powder grinding machine that can continuously work for 24 hours every day.
Characteristics
1. Large ring gear, large side cover and large bearing. The gear hub is large, which can prolong its service life, and adopts high-frequency quenching heat treatment process on the modulated surface; The sprocket adopts high-frequency quenching heat treatment process on the modulated surface.
2. Energy saving: Ball bearings are used instead of slide bearings, which greatly reduces the frictional force, makes starting easier, and saves 10-15% of energy consumption compared with the old ball mill .
3. Large processing capacity: Due to the use of the discharge disc and grate plate of the standard mill, the processing capacity is increased by more than 20% compared with the energy-saving conical ball mill.
4. The mud surface of the discharge port is low, and the mud can pass quickly, which can reduce the excessive grinding of the ore.
5. There are many loaded balls, large and small balls can be loaded, and small balls will not be discharged, and good working conditions can also be formed.
6. The equipment is equipped with Support frame , more easier for clients installation in plant site.
7. The electronic control system has taken protective measures against motor overcurrent, power failure and three power supply imbalances, so as to realize the "worry-free" operation of the ball mill.
Detailed Photos
Ball mill structure: Contained feeding system, the discharging system, the transmission system(speed reducer, small transmission gear, electrical machinery, electric control) & etc.

Product Parameters
It guarantees the quality and the non-conforming products are not permitted to be sold. The company occupies the market both at home and abroad rapidly because of the high quality and reliable performance of the products

Drum Size	capacity(t/h)	rotation rate(rpm)	Ball Weigh(t)	kind of drive	Reduce	Power(Kw)
Φ1.5*5.7	33-6	27	11	margin	ZD40	130
Φ1.5*6.4	4-7	27	12	margin	ZD40	130
Φ1.83*7	8-13	23.9	21	margin	ZD60	245
Φ2.2*7	13-18	21.4	33	margin	ZD60	380
Φ2.2*7.5	14-19	21.4	35	margin	ZD60	380
Φ2.2*10	15-20	21.4	45	margin	ZD80	475
Φ2.4*8	18-27	20.4	41	margin	ZD80	475
Φ2.4*9	19-29	20.4	42	margin	ZD80	570
Φ2.4*10	20-32	20.4	52	margin	ZD80	630
Φ2.4*11	21-34	20.4	60	margin	ZD80	630
Φ2.4*13	23-36	20.4	65	margin	MBY710	800
Φ2.6*10	28-38	19.7	70	margin	MBY710	800
Φ2.6*13	30-40	19.7	78	margin	MBY800	1000
Φ2.8*13	32-42	19.7	78	margin	MBY800	1250
Φ3.0*9	32-42	18.14	83	margin	MBY710	1000
Φ3.0*11	35-48	18.14	100	margin	MBY800	1250
Φ3.0*13	36-50	18.14	102	margin	MBY900	1400
Φ3.2*4.5	30-50	18.7	45	margin	MBY710	800
Φ3.2*11	38-52	17.76	110	margin	JDX100	1600
Φ3.2*13	45-60	17.76	120	margin	JDX100	1600
Φ3.5*13	65-90	17.1	165	margin	MBY1100	2000
Φ3.6*4.5	90-136	17.8	58	margin	MBY800	1000
Φ3.6*9	20-45	16.9	70	margin	Synchronous motor:1600
Φ3.8*13	70-100	16.8	180	margin	DBS280	2500
Φ4.2*13	130-150	15.9	231	margin	DBS280	3550

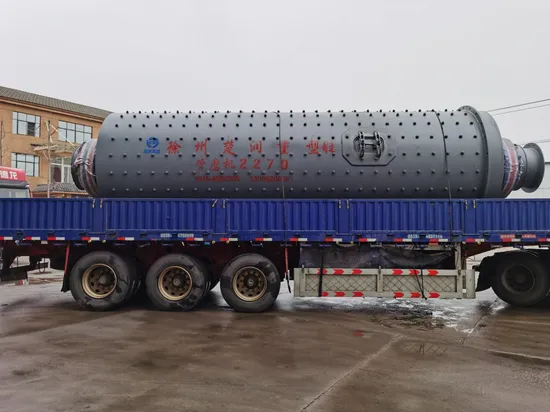

Packaging & Shipping
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below, nude packing, bundle packing, grass rope packing, water proof packing, wooden pallets packing, wooden box or carton box packing. Our Advantages
Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. covers an area of 5000 square meters.
Churun is customer-centered and dedicated to providing individualized, all-around plant equipment configuration solutions. There are nearly 300 production lines in the global cement, chemical, lithium mica, taconite, metallurgy, solid waste disposal and other industries. The company has a technical team composed of senior experts in the industry.With profound design capability and rich experience, we have achieved fruitful results in the market and won the trust and praise of users. In the future, Churun Heavy Industry will continue to uphold the concept of professionalism, integrity, innovation, advancing with the times, to provide users with efficient and reliable equipmentand technical solutions.
Headquarter of Churun located in Xuzhou city, about 200,000 square meters, .There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly
At present, our products have been recognized by domestic and worldwide customers, and successfully exported to Indonesia, Russia, Cambodia, Vietnam, Laos, Africa, Uzbekistan, Romania and other countries and regions.



After Sales Service
Best Service with after-sales service and consultation,we have an excellent customer service driven approach to ourbusiness, unlike most sites we are consistently available via sales hotline, email, skype or MSN and always respond toemails within 30 mins
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
FAQ
1. Why we believe in Xuzhou Churun industries co., ltd:
1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate
4.We can make video call any time to show you our actual factory.
2.How long is the delivery time of your product?The delivery time is within 30 working days.3. Payment terms:
A: Accept payment type: T/T, Cash.30% deposit when signed contract. Full payment paid before shipping.4.How long is the product warranty period?Our warranty period is 1 year, excluding wearing parts.5.What's the after sale service of your company?We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.6. Can your company provide wearing parts?We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
