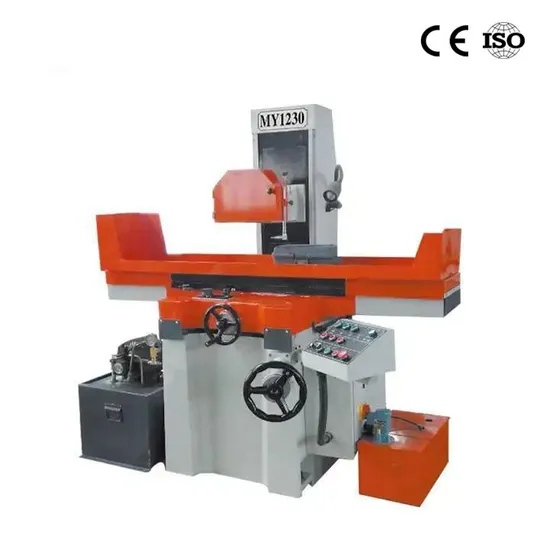

Senmo China Metal Grinder Machine Hydraulic Surface Grinding Machine My1230
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
MY1230
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Table Size (Lxw)
750X300mm
Max Movement of Working Table (Lxw)
780X320mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84601910
Product Description
| Grinding Machine |
| Hydraulic Surface Grinding Machine |
| Hydraulic longitudinal table travel. Quality castings and precision ball bearing supporting the spindle. Coolant system with nozzle and flow control valve. Cast iron machine body and stand for maximum rigidity and smooth operation. |
| Specifications | MY1224 | MY1230 | |
| Table Size (LxW) | 600x300mm | 750x300mm | |
| Max. movement of working table (LxW) | 630x320mm | 780x320mm | |
| T-Slot number x width | 1x14mm | 1x14mm | |
| Max. distance from spindle center to table surface | 520mm | 520mm | |
| Wheel size (Outer diameter x Width x Inner diameter) | 300x30x76.2mm | 300x30x76.2mm | |
| Wheel speed | 50Hz | 1450r/min | 1450r/min |
| 60Hz | 1680r/min | 1680r/min | |
| Longitudinal speed of working table | 3-20m/min | 3-20m/min | |
| Vertical feed on handwheel | Per revolution | 2mm | 2mm |
| Per graduation | 0.01mm | 0.01mm | |
| Speed of vertical feed | 360mm/min | 360mm/min | |
| Cross feed on handwheel | Per revolution | 4mm | 4mm |
| Per graduation | 0.02mm | 0.02mm | |
| Spindle motor | 2.2kW | 2.2kW | |
| Coolant pump motor | 40W | 40W | |
| Lifting motor | 120W | 120W | |
| Hydraulic motor | 2.2kW | 2.2kW | |
| Working pressure | 4MPa | 4MPa | |
| Oil tank capacity | 100L | 100L | |
| Max. flow | 20L/min | 20L/min | |
| The parallelism of working surface to base level | 300:0.005mm | 300:0.005mm | |
| Surface roughness | Ra0.32μm | Ra0.32μm | |
| N.W./G.W. | 1400/1530kg | 1450/1550kg | |
| Packing size | 200x164x202cm | 200x164x202cm | |
| Standard Accessories |
| Tool box |
| Balancing stand and bar |
| Flange wrench |
| Screw driver |
| Balancing screw |
| Open-end wrench |
| Inner hexagon spanner |
| Wheel dresser holder |
| Diamond pen |
| Machine stand pad |
| Grinding wheel and wheel flange |
| Magnetic chuck |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
