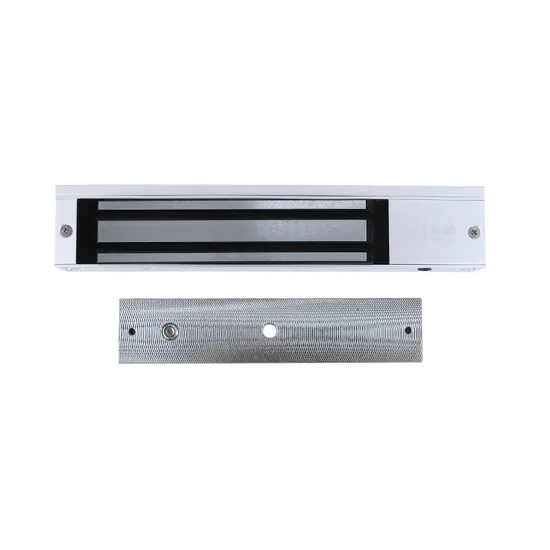

255ms 507lbs Single Door Elctromagnetic Door Lock Wooden/Glass/Metal/Fire Door
| US$10.40-12.00 | 12 Pieces (MOQ) |
Basic Info.
Model NO.
YGS-255MS
Material
Aluminum Alloy
Type
Combination Lock
Style
Modern
Shape
Mortise Door Lock
Anti-theft Standard
B
Part
Lock
Backset
60mm
Door Thickness Fits
35-50mm
Usage
Household Door Locks, Channel Lock
Transport Package
Carton Box
Specification
Size of lock body: 250L*28W*38H(mm)
Trademark
customize
Origin
China
HS Code
8601101100
Production Capacity
500000pieces/Year
Product Description
Product Description| Holding Force | 507lbs( 230KG±15%) |
| Operating Voltage | 12V/24V DC |
| Working current | 400mAx2 |
| Operating temperature | *-25 ºC~60 ºC |
| Working humidity | 10%~90%RH |
| Way of unlock | Power on to lock(Fail safe) |
| Installation method | Hanging installation (Surface installation) |
| Door opening angle | 90° |
| Panel material | High strength aluminum alloy |
| Finish | Oxidation & brushed finishing |
| Signal feedback | no |
| Indicator light | Red LED |
| Magnetic size | 238*27*47 mm |
| Armature plate size | 182L*38W*13H |
| Scope of application | Wooden door, Fireproof door, Glass door, Metal door |
| Service life | More than 500000 times |
| Weight | 2.05kg/pcs |
| Packing quantity (PCS/CTN) | 12 |
| Certifications | CE/REACH/ROHS/WEEE |
