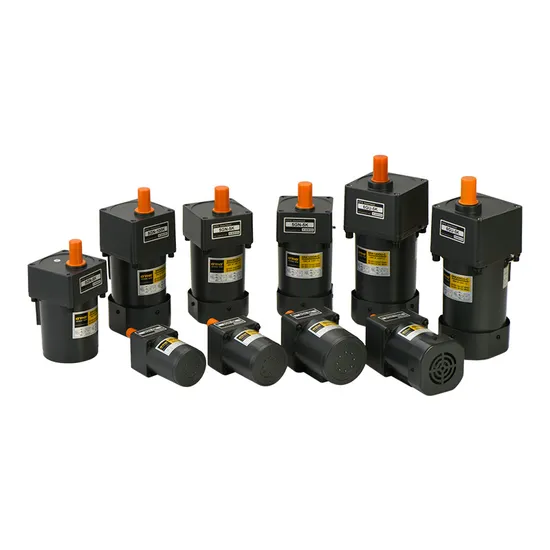

Constant Speed Induction Reversible Single Phase Electromagnetic Brake Electric AC Micro Compact Gear Reduction Motor

Product Description

TaiBang Motor Industry Group Co., Ltd.
The main products is induction motor, reversible motor, DC brush gear motor, DC brushless gear motor, CH/CV big gear motors, Planetary gear motor ,Worm gear motor etc, which used widely in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc, and is the preferred and matched product for automatic machine.
Should you have any question,please feel free to contact Ms Susan Liu directly.
Motor Model Instruction
5RK40GN-CM

5	R	K	40	R	GN	C	M
Frame Size	Type	Motor series	Power	Speed Control Motor	Shaft Type	Voltage	Accessory
2:60mm 3:70mm 4:80mm 5:90mm 6:104mm	I:Induction R:Reversible T:Torque	K series	6W 15W 25W 40W 60W 90W 120W 140W 180W 200W		A:Round Shaft GN:Bevel Gear Shaft (6W,15W,25W,40W) GU:Bevel Gear Shaft (60W,90W,120W,140W,180W,200W)	A:Single Phase 110V C:Single Phase 220V S:3-Phase 220V S3:3-Phase 380V S4:3-Phase 440V	T/P:Thermally Protected F:Fan M:Electro-magnetic Brake

Gear Head Model Instruction
5GN-100K

5	GN	100	K
Frame Size	Shaft Type	Gear Reduction Ratio	Bearing Type	Other information
2:60mm 3:70mm 4:80mm 5:90mm 6:104mm	GN:Bevel Gear Shaft (60#,70#,80#,90# reduction gear head) GU:Bevel Gear Shaft (100# reduction gear head) GM:Intermediate Gear Head GS:Gearhead with ears	1:100	K:Standard Rolling Bearing RT:Right Angle With Axile RC:Right Angle With Hollow Shaft	Sch as shaft diameter,shaft length,etc.

Specification of motor 40W 90mm Fixed speed AC gear motor

Type	Gear Tooth Output Shaft	Power (W)	Frequency (Hz)	Voltage (V)	Current (A)	Start Torque (g.cm)	Rated		Gearbox Type
							Torque (g.cm)	Speed (rpm)	Bearing Gearbox	Middle Gearbox
Reversible Motor	5RK40GN-C	40	50	220	0.45	3000	3000	1300	5GN/GU-K	5GN10X
		40	60	220	0.41	2500	2515	1550	5GN/GU-K	5GN10X

Gear Head Torque Table(Kg.cm) (kg.cm×9.8÷100)=N.m

Output Speed :RPM			500	300	200	150	120	100	75	60	50	30	20	15	10	7.5	6	5	3
Speed Ratio		50Hz	3	5	7.5	10	12.5	15	20	25	30	50	75	100	150	200	250	300	500
		60Hz	3.6	6	9		15	18		30	36	60	90	120	180		300	360	600
Allowed Torque	40W	kg.cm	6.7	11	16	21.3	28	33	42	54	65	108	150	150	150	150	150	150	150
	60W	kg.cm	10	16	24	32	40	48	64	77	93	150	150	150	150	150	150	150	150
	90W	kg.cm	14	23	35	46	58	69	92	110	133	200	200	200	200	200	200	200	200
	120W	kg.cm	19	30.7	46	61	77	92	123	147	177	200	200	200	200	200	200	200	200
Note: Speed figures are based on synchronous speed, The actual output speed, under rated torque conditions, is about 10-20% less than synchronous speed, a grey background indicates output shaft of geared motor rotates in the same direction as output shaft of motor. A white background indicates rotates rotation in the opposite direction.

Drawing:5RK40GN-C/5GN3~20K(Short gearbox shell 43mm)
Drawing:5RK40GN-C/5GN25~180K(Short gearbox shell 61mm)
Above drawing is for standard screw hole.If need through hole, terminal box, or electronic magnet brake, need to tell the seller.
Connection Diagram:
