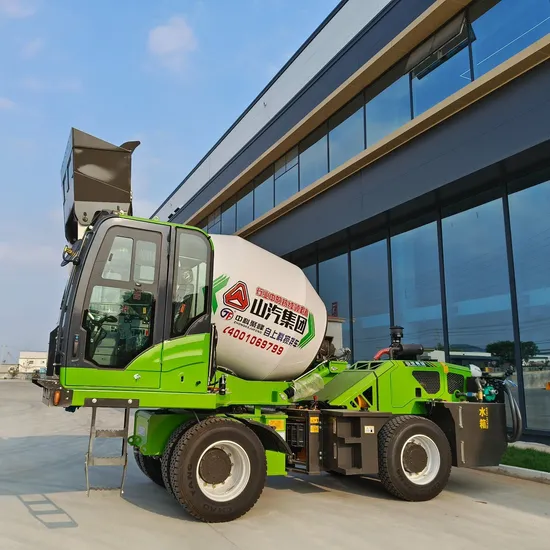

Sqmg Hydraulic Self-Loading Mixing Tank Mobile Concrete Mixer Truck

Sqmg Hydraulic Self-Loading Mixing Tank Mobile Concrete Mixer Truck

US$19,000.00-21,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
3.5 Cubic meters
Capacity
120-200cbm/Day
Certification
CE, ISO, ISO9001+45001
Condition
New
Main Material
Carbon Steel, Stainless Steel, Steel
Mixing Capacity
4740L
Mixing Drum Shape
Drum
Power Source
Diesel
Safety Features
Anti-Slip Feet, Emergency Stop Button, Safety Lock
Stirring Type
Spiral
Warranty
1 year
Working
Self Loading+Mixing+Delivery+Unloading
Engine Brand
Yuchai/Yunnei
Emission Standard
Euro 5/EPA 4/National 2
Power
85kw
Horsepower
118HP
Fuel
Diesel
Vehicle Structure
Articulated Frame
Drum Capacity
4.74cbm
Concrete Output
3.5cbm
Machine Weight
8050 Kg
Drive Form
Torque Converter
Drive Type
4X4 Wheel Drive
Gearshift
4 Forward 4 Back
Transmission Type
Automatic
Transport Package
Bare Packaging, 1 Sets Per 40hq Container
Specification
7590*2600*4270
Trademark
SQMG
Origin
China
HS Code
8705400000
Production Capacity
1000 Unit/Units Per Month

Packaging & Delivery

Package Size
790.00cm * 280.00cm * 420.00cm
Package Gross Weight
8000.000kg

Product Description

Product Description

Model

Overall
Dimensions
(L*W*H)

Wheel base(mm)

Curb Weight(kg)

Engine Rated Power

Mixing Drum
Geometrical Capacity

Drum
Rotation
Speed

Concrete Yield

0.5m³

4200*1600*2350

1500

1860

16KW

700L

18-21rpm

0.5m³/Batch

0.8m³

3389*2876*2295

3620

1450L

0.8m³/Batch

1.2m³
7300*1800*3450 2560 4920
58KW

1700L

13rpm
1.2m³/Batch

2m³(270°)

6950*2720*3850

2520

6300

75KW

3500L

18-21rpm

2.0m³/Batch

2.6m³(270°)
7860*2750*4100 2800 7000 75KW 3000L
13rpm

2.0m³/Batch

2.6m³(270°)

7100*2750*4100

2650

7800

75KW
3580L
13-20rpm
2.6m³/Batch

3.5m³A(270°)

7830*2680*4170

2900

7800

85KW

4740L

18-21rpm

3.5m³/Batch

3.5m³B(270°)

7730*2700*4180

2605

7900

85KW

4740L

18-21rpm

3.5m³/Batch

3.5m³C(270°)

7600*2800*4180

2640

8300

85KW

4740L

18-21rpm

3.5m³/Batch

3.5m³D(180°)

7590*2600*4270

2687

8050

85KW

4740L

18-2lrpm

3.5m³/Batch

4m³(270°)
Aiticulation Synchronization

8450*3000*4500

3300

9700

91KW

6000L

20rpm

4.0m³/Batch

4m³(290°)
Overall
fiame

7640*2870*4750

2480

9000

91KW

6000L

18-21rpm

4.0m³/Batch

5.5m³(270°)
8450*3100*4580 3350 11200 92-132KW 7800L
20rpm

5.5m³/Batch

6.5m³(290°)
Overall
fiame

8450*3050*4830

2850

12520

92-132KW

9000L

16.5rpm

6.5m³/Batch
More Products
Company Profile Shandong Shanqi Construction Machinery (Group) Co.,Ltd. was born out of Laizhou Jufeng Co., Ltd., which was founded in 1992 and has formed an industrial structure of "One Body Two Wings". It is a leading manufacturer of professional construction machinery equipment with a history of nearly 30 years, and is also a national heavy equipment manufacturing enterprise supported by the Chinese government. Our company is a group enterprise covering an area of more than 200,000 square meters, with more than 600 employees and 5 production plants. The main products we manufacture include self-loading concrete mixer trucks with output capacity from 0.6 cubic meters to 6.5 cubic meters, wheel loaders with payloads from 1 ton to 5 tons, backhoe loaders, rough terrain forklifts, crawler excavators, concrete Mixing pump etc.
The company has passed ISO9001, ISO45001, ISO14001 and other certifications, most of the products have relevant patent certificates, and related products have also passed CE certification. We continuously improve and update our products according to customer feedback and market demand. At every stage of the manufacturing process, each component passes rigorous testing before the assembled machine passes final preshipment inspection. So far, we have more than 200 distributor agents, 150 service provider agents and 10 spare parts warehouse centers in China, and have established a relatively complete after-sales service system. Our products have been exported to more than 30 countries and regions such as Europe, America, Southeast Asia, Central Asia, Middle East, Africa and Oceania. High-quality products, sufficient supply of spare parts, fast and efficient after-sales service and reasonable prices have enabled us to win the trust and good reputation of customers in domestic and foreign markets, and forged the "ZKJF" brand. In accordance with the development strategy of "taking the road of famous brand and building a century-old ZKJF", the company strives to move towards the grand goal of becoming a first-class enterprise in mainland China and a world-renowned construction machinery manufacturer.
Packaging & Shipping PACKING AND SHIPPING USUALLY BY SEA Container: The cheapest and fastest to place the machinery in container, which needs to be disassembled. Flat frame: usually used to delivery machinery, with a maximum carrying capacity of 35 tons. Bulk Carrier: More suitable for large construction equipment without dismantling. Ro-Ro : The boat is driven directly onto the ship, no disassembly is required.
FAQ Q: Are you the original manufacturer?
Answer: Yes, ZKJF was established in 1992 and is a national heavy equipment manufacturing enterprise mainly supported by the Chinese government.
Q: How is the quality of your products?
Answer: Our company has passed ISO9001, ISO45001, ISO14001 and other certifications. Most of our products have patent certificates, and related products have also passed CE certification. All the machines are carefully and strictly inspected and maintained by our skilled workers according to Chinese national standards as well as international standards, before shipping we will check the equipment again until it runs well before delivery. So as to ensure that every machine we deliver to customers has good performance and high quality.
Q: Will the price be higher than that of low-end products in the industry?
Answer: We are the leading manufacturing factory in China, and many big brand owners also carry out OEM production in our company. The production scale has reached a certain level. Although our products are of higher quality, the price is still very favorable.
Q: Do you provide after-sales service?
Answer: Yes. We provide a 12-month warranty, and our company is responsible for product quality problems caused by quality during this period. That is, if quality problems occur within 12 months after purchase, our company will provide free spare parts and promise to provide technical services. Our company has a professional after-sales service team, after-sales engineers provide installation and commissioning training, and solve all your worries systematically, thoroughly and quickly.
Q: How about your product spare parts service?
A: We are committed to providing our customers with high quality product spare parts service, precise fit and fast delivery and service. If spare parts are damaged due to product quality problems during the warranty period, we provide free spare parts.
Q: What about problems in daily use?
Our customer maintenance department and after-sales service engineers provide online consultation at any time.
