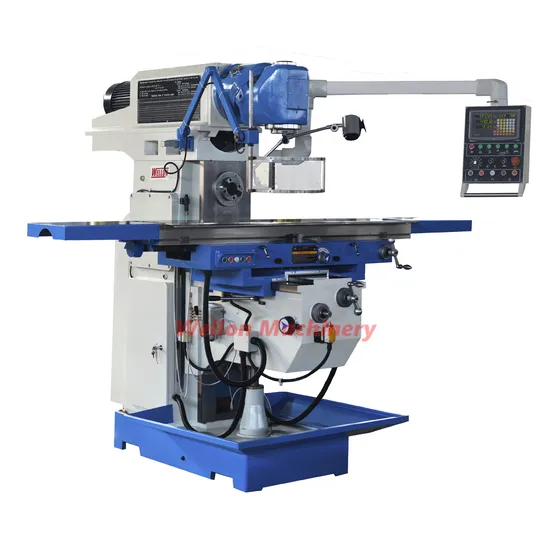

Um1460 Heavy Duty Universal Swivel Table Milling Machine
| US$10,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UM1460
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Worktable Size
1700X400mm
Transport Package
Ply Woodcase
Specification
CE SGS ISO9001 ROHS
Trademark
WELLON
Origin
China
HS Code
84595900
Production Capacity
20 PC/Month
Product Description
Products Description:Specifications:
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
| Specifications | Unit | UM1460 |
| Table size | mm | 1700×400 |
| Table travel (X/Y/Z) | mm | 1300/450/650 |
| T-slots(NO./width/pitch) | mm | 3/18/100 |
| Table feed speed X axis | mm/min | 25~800 |
| Table feed speed Y axis | mm/min | 25~800 |
| Table feed speed Z axis | mm/min | 8~267 |
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | |
| Arm travel | mm | 700 |
| Distance from vertical spindle to table | mm | 200-850 |
| Distance from horizontal spindle to table | mm | 0-500 |
| Distance from spindle to arm | mm | 200 |
| Spindle speed range | r.p.m | 50-1520 (V) 60-1850 (H) |
| Spindle speed steps | steps | 12 |
| Main motor power | Kw | 5.5 (H) 5.5 (V) |
| AC servo feed motor torque | N.m | 12 |
| Overall size | mm | 2245×2100×2000 |
| Net weight | kg | 3700 |
Standard accessories :
Mill chuck set
Draw bar
Mill arbors
Worktable swivel ±50 degree
Reduction sleeve
Coolant device
Coolant tray
Automatic central lubrication
Foundation bolts
Tools
Optional accessories :
Machine vice 160mm
Machine vice 200mm
3-Axis Digital readout
Universal Dividing Head F11-160A
Rotary table TSL300
58 pcs Clamping kits
Spindle protection
Worktable protection
Slotting head
