Pngs Series Large Diameter HDPE PP PVC Plastic Pipe Shredder Machine

Product Description

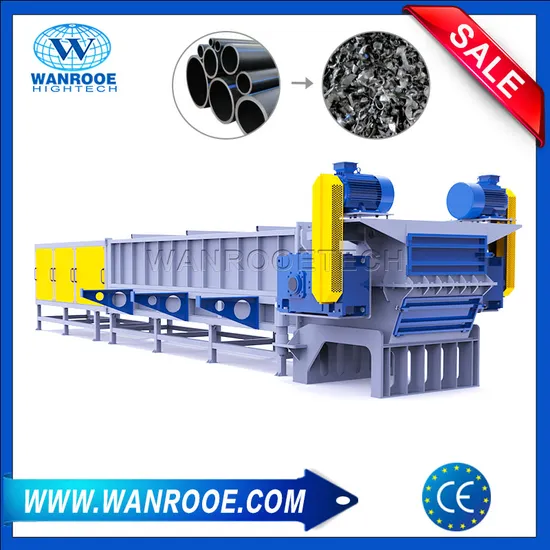

PNGS Series Large Diameter HDPE PP PVC Plastic Pipe Shredder Machine
Applications:
PNGS series pipe shredder is suitable for shredding PE, PP, PVC pipes, and profiles which diameter is <1200mm and length is <6000mm. Working principle: Put the material into the feeding trough and then push the material to shred by hydraulic pushing device.After the shredder, the conveyor transports the shredded material into a crusher for secondary crushing.
- Plastic pipes: PE pipe, PVC pipe, PP pipe, ABS pipe, large diameter HDPE pipe
- Rubber tubes & pipes
- Paper cores/tubes
The main focus of the PNGS shredders is used to shred large diameter pipes or bundles of smaller pipes and profiles made from HDPE.PP and all kinds of PVC. Besides the machines can be used for recycling of other plastic parts, such as large lumps. stacked waste bins and pallets.ln combination with other WANROOETECH size reduction equipment such as granulators and pulverizers, we are able to provide a complete turnkey recycling solution.
Large Diameter pipe shredder blade:
Features:
1. The shredder single shaft for plastic can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film
2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber and substantial, so good-sized material is practicable.
3. Revolving knife is designed and processed particularly in thickness, shape.
4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials is too big and much. Operate safely, low-speed running, low noise, little dust.

Technical Parameters

Model	PNGS-800	PNGS-1000	PNGS-1200	PNGS-1500	PNGS-2000
Feeding port dimension(mm)	750x790	960x790	1140x1160	1340x1360	1540x1540
Rotor speed	36	33	27	23	17
Driving motor	30+30	37+37	45+45	55+55	75+75
Max pipe diameter(mm)	630	800	1000	1200	1600
Hydraulic power(kw)	11	15	15	15	18.5
Output(kg/h)	800-1000	1000-1500	1200-1800	1500-2000	2000-3000

Customer Feedback:
Our Service
1. One year guarantee for the whole machine.
2. 24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training services which help operators handle the machine well.
