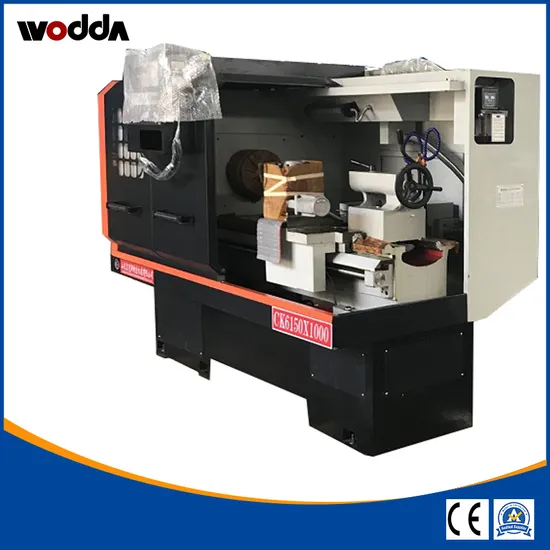

CNC Lathe Machine with Drilling Function for Machining Mill Cylinder Ck6150

CNC Lathe Machine with Drilling Function for Machining Mill Cylinder Ck6150

US$3,600.00-8,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK6150
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
SGS
Condition
New
Motor Power
7.5kw
Chuck Size
250mm
X/Zaxis;Travell
X:300 Z:750/1000/1500
Spindle Bore
52/82 mm
Transport Package
Plywood
Specification
2500*1500*1690mm
Trademark
woda
Origin
China
HS Code
8458110090
Production Capacity
300 Sets/Month

Product Description

CNC lathe manufacturer CK6150 cnc Lathe Machine Price
Feathers
1. Large-scale production layout
2. Modern workshop configuration
3. Precise detail management
4. Global brand positioning
5. Quality of product promotion
1.frequency conversion stepless speed regulation

2.with servo system

3.four position electric turret

4.standard configuration: spring chuck and chuck double use

5.optional configuration: hydraulic chuck/Row holder


Parameter
Model CK6150
Max swing over bed 500mm
Max swing over cross slide 280mm
Max processing lenght 750/1000/1500mm
X/Z axis travel X:300 Z:750/1000/1500
Spindle transmission type Mechanical three gear speed
Spindle speed step In gear variable speed
Spindle speed L :70-560 H:200-1600
Spindle nose C6
Spindle bore 52/82mm
Spindle taper MT6
Spindle motor 7.5kw
Chuck size 250mm
Ball screw dia and pitch 2506/4008
X/Z axis feed motor torque X:5.5Nm Z:7.5Nm
X/Z rapid traverse X:6mm/min Z:8mm/min
X/Z axis repeatabilty +/-0.005mm
Processing accuracy IT6-IT7
Workpiece surface roughness Ral.6
Tailstock quill dia 75mm
Quill travel 140mm
Quill taper MT5
Tool post type 4-position electric turret
Cutting tool size 25x25mm
Guide form One shan one flat
Total power capacity 12KVA
Machine dimension 2500x1500x1690mm
N weight 2000kg

CNC Lathe CK6150 In Worshop
real pictures
CNC Lathe Details
Details decide the quality
Processing
From drawing design to positive production
Upgrading components accuracy from each processing step standardization

Parts must be passed through quality inspection before assembly.
24 hours of destructive testing after assembly.

Customer Visit
Give the warmest welcome if you visit us
Packing & Delivery
Export machines with plywood packages
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Woda Heavy Machinery Co.,Ltd focused on professional production cnc lathe, radial drilling machines and hydraulic press machines for up to 20 years, is China's mature brand. We "quality of survival" management philosophy, has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.

Q:How about the service?
A: Shandong Woda Heavy Machinery Co.,Ltd is always provide good service, pre-sale--->in sale-->after sale.
Pre-sale: We have professional sales staff who are familiar with the products and are ready to solve problems for you.
In sale: We have a professional technical team with sales staff to provide you with solutions in real time.
After sale: At present, there is no after-sales problem. Once we encounter after-sales problems, we will promptly solve the problem for our customers. If necessary, we can send people to the past.

Q:Where is your manufactory in China ?
A:Shandong Woda Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China.
Convenient transportation, welcome to your visit.
