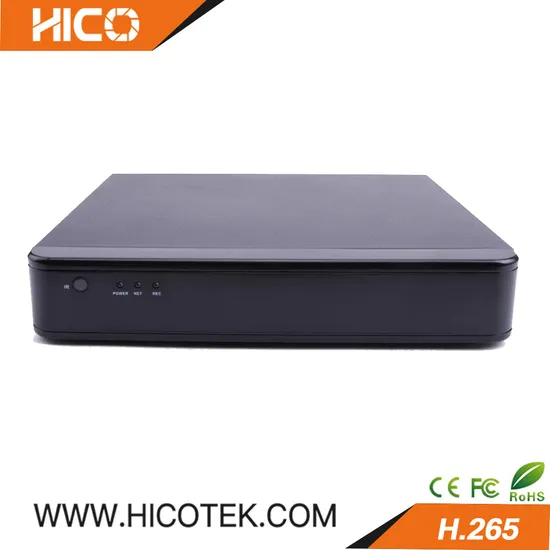

4CH 4K 8MP Ultra Full HD H. 265 Hybrid Ahd+Tvi+Cvi+ Network IP Camera DVR Security Digital Video Recording Camera
| US$53.00-56.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
HA-XVR8MP1H04
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDMI
Video Input/Output
4 Channel
Audio Input/Output
4 Channel
Remote Control
With Remote Control
SATA
8tb X 1
Hybrid Mode
Ahd+Tvi+Cvi+CVBS+IP
Utc
Coaxial Control
PTZ
Yes
Alarm
N/a
Resolution
4K 8MP
WiFi/3G/4G
Support
Transport Package
Neutral Packing
Specification
250*45*230mm
Trademark
HICOTEK/OEM/ODM
Origin
China
HS Code
8525909090
Production Capacity
5000PCS/Month
Product Description
Features:4CH 8MP (TVI/AHD/CVI/CVBS/IP) Hybrid DVR
Video Preview: 4CH Mixed 8MP Cameras Input
Video Output: 1x HDMI,1x VGA,1x CVBS
HDD: 1 SATA, MAX 6TB
| Model NO. | HA-XVR8MP1H04 |
| XVR System | |
| Type | 4CH 8MP Hybrid DVR |
| Compression Method | H.265/H.264 |
| Main Processor | 3521D_2829_8G |
| Operating System | Embedded LINUX |
| HDD | 1 SATA, MAX 6TB |
| Display & Recording | |
| Video Input | 4CH |
| Encode Capacity | 1.AHD/TVI:4CH 5M@12fps recording 2.AHD/TVI:4CH 8M@6fps recording 3. HVR:2CH 5M@12 fps Analog + 2CH 5M@25fps IP recording 4.NVR:8CH 1080P@25fps IP recording |
| Search Mode | Time, Date, Alarm, Motion Detection, Exact Search |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Frame by Frame, Zoom In /Out |
| Playback & Backup | |
| Decode Capability | MAX 4CH |
| Sync Playback | 1.AHD/TVI:4CH 5M@12fps playback 2.AHD/TVI: 2CH 8M@6fps playback 3. HVR: 2CH 5M@25fps playback 4.NVR: 4CH 1080P@25fps playbac |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind |
| Backup Mode | USB Device/DVD/CD/Network |
| Video | Alarm | Audio | |
| Video Output | 1x HDMI,1x VGA,1x CVBS |
| Audio | 4CH |
| Alarm | / |
| Network | |
| Interface | RJ45 Port / 10M / 100M Adaptive IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP |
| CMS Software | Support |
| Cloud Support | iCloud Software one‐click online; Support IE Firefox Google Chrome Mac OS Safari |
| Language | 28 kinds of Languages |
| Smart Phone | Iphone, Ipad, Android, Android Pad |
| General | |
| Voltage | DC 12V |
| USB Port | 2 USB2.0 |
| PTZ | Pelco-D, Pelco-P |
| RS485 | YES |
| Size | 250*230*45 mm |
| Weight | 2.5 Kgs (Without HDD) |
