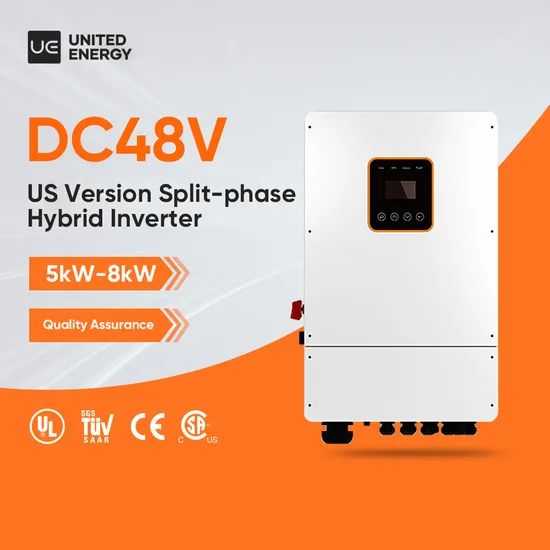

Hybrid Solar Inverter Price List 5kw 8kw 10kw 12kw Inverter with Lithium Battery for Solar Panel

Hybrid Solar Inverter Price List 5kw 8kw 10kw 12kw Inverter with Lithium Battery for Solar Panel

US$699.00
1-49 Pieces
US$609.00
50-199 Pieces
US$550.00
200+ Pieces

Basic Info.

Nature of Source Flow
Active Inverter
Phase
Single
Output Power
5-8kw
Certification
SAA, CE, ROHS, ISO9001
Brand
United Energy
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Square Wave Inverter
Rated Power
8000W
Battery Voltage
48VDC
Application
Solar Power System Home
Product Name
MPPT Hybrid Solar Inverter
Color
Gray
Communication
WiFi / RS485
Protection
IP65
Feature
Energy Saving
Start Voltage
85V
Max. PV Voltage
500V
Transport Package
Carton Box with Pallets
Specification
430*710*210mm
Trademark
UNITED ENERGY
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Week

Product Description

Product Description
Specifications
ModelR5KLNAR6KLNAR7KLNAR8KLNA
ON GRID AC OUTPUT
Rate AC Output Power5KVA6KVA7KVA8KVA
AC Output Voltage120/240Vac (split phase), 208Vac (2/3 phase), 230Vac (single phase)
AC Output Frenquecny50/60Hz
Grid TypeSplit phase, 2/3 phase, Single Phase
Max Output Current24A28.8A36.5A38.3A
AC reverse chargingYes
PF0.8leading…0.8lagging
BACK-UP AC OUTPUT
Rated Backup output power5KVA6KVA7.6KVA8KVA
Max Backup output power6.25kVA 60S. 7.5KVA 1S7.5kVA 60S. 9KVA 1S9.5kVA 60S. 11.4KVA 1S10kVA 60S. 12KVA 1S
Backup AC output Voltage120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
AC Frenquency50/60Hz
PV INPUT
PV input power7.5kW9kW12kW12kW
MPPT number4
PV voltage range350V/85V-500V
MPPT voltage range120V-500V
Single MPPT input current12A12A12A12A
BATTERY
Max charging /discharging current120A / 120A135A / 135A190A / 190A190A / 190A
Battery Voltage range48V
Battery TypeLithium-ion,Lead-acid
PROTECTION
Ground protectionYes
AFCI protectionYes
Islanding protectionYes
DC disconnect detectionYes
Battery Reverse protectionYes
Battery charge and discharge protectionYes
Insulation testingYes
Input overvoltage & under-voltage protectionsYes
Output overvoltage & under-voltage protectionsYes
AC & DC over-current protectionYes
AC short-circuit current protectionYes
Overheating protectionYes
GENERAL DATA
Operation Temperature range-25 ~ +60°C
Environment humidity0-95%
IP rankIP65/NEMA 3R
Weight32kg
Dimension (W × H × D)430 × 710 × 210mm
CoolingFan Cooling
Noise (dB)<25dB<29dB<29dB
DisplayLCD
Communication / Safty / EMC / On GridModbus, RS485, WIFI, 4G / EN61000-6-1, EN61000-6-3, FCC 15 class B
EC62109-1, IEC62109-2 / UL1741 ,IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99
Certifications
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solar PV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy's products have been widely applied in over 150 countries. UE Factory
