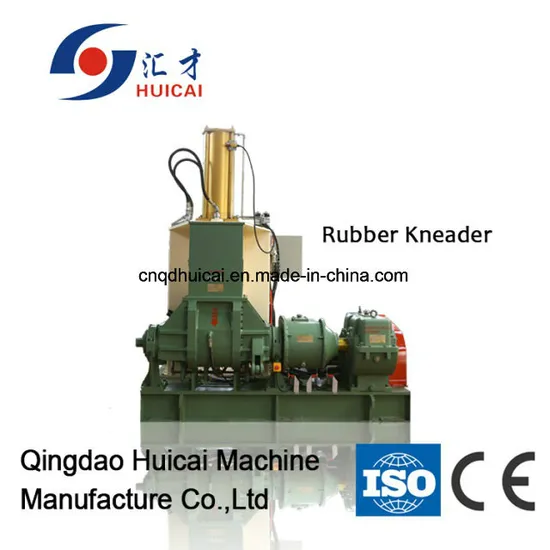

Rubber Kneader Machine Banbury Mixer

Product Description

Function&feature
High quality rubber kneader 75 liter
Mixing chamber:
Consist of the main body welded of high-quality steel plate in the shape of "W" and two side plate. It is of jacket design for cooling or heating; The inside is plated with hard chrome or built up by welding with carbide alloy.
Rotor:
Banbury type, the rotor shaft has a bore and radial holes that lead to the wing cavities forming the cooling/heating channel. The wings are built up by welding with carbide alloy on the top and end faces and then groud, plated hard chorme and polished.
Heating /cooling system:
A common piping system is used. Cooling water/steam/mediun oil is led in three ways in to the cavities of the rotor wings, the mixing chamber and the ram to cool or heat stock in a circulation way.
Titling mechanism:
Comprised of the braking motor, the cycloid reducer and the planar worm gear set to drive the mixing chamber tilting around the front rotor shaft by 140° And returning to the home position.
Electrical control system:
PLC is used. Famous brand products are used as main part and elements of the electrical control, ensuring the high reliability of the system.
Dust sealing unit:
Sealed with the arched plate groove labyrinth structure, showing good sealing effect. The rotor shaft end is sealed with the contact type self-lubrication sealing with spring tension that provides reliable sealing.
Main drive system:
Comprised of the main motor, the speed reducer and the connection gearbox to drive the two rotor shafts rotating at differential or same speed in opposite directions.
Pneumatic control system
PLC commands the bid-directional cylinder to drive the ram going up and down, protect the motor from operation at over load. The ram can be forcibly lifted manually If necessary.
Technical parameters

Model		X(S)N-20×34	X(S)N-35×30	X(S)N-55×30	X(S)N-75×30	X(S)N-110×30	X(S)N-150×30
Total volume of mixing chamber(L)		45	75	125	175	250	325
Working volume of mixing chamber(L)		20	35	55	75	110	150
Driving motor power(KW)		22	55	75	110	185	220
Tilting motor power(KW)		1.5	2.2	2.2	3.0	5.5	5.5
Tilting angle(°)		140	140	140	140	140	140
Rotating speed of the rotor (front /rear)(rpm)		34/28	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air(Mpa)		0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Capacity of compressed air(m 3 /min)		≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥1.5
Pressure of cooling water (rubber mixing)(Mpa)		0.2~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of heating steam (plastics mixing)(Mpa)		0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.4~0.8
Overall dimension(mm)	L	3100	3200	3300	3760	4075	4200
	W	1300	1900	1900	2143	2712	3200
	H	2450	2945	2900	3135	3580	4000
Weight(ton)		4.5	6.5	7.2	10	14.5	19.5

About us--
Qingdao HUICAI Machine Manufacture Co., LTD.
1. has specialized in machine manufacture almost 20 years;(since 1996)
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;
6.our machine are welcome by the world,popular in lots of markets
Notice:
we can accept FOB,CIF,CFR,EXW,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
FAQ
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao airport,then we can pick you up to our facotry.Warm welcome to visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines pass CE,ISO,SGS certification.We have a special quality control team, each machine will go through strict inspection before delivery.All our machines have 1 year guarantee.
4.Q:What's your payment term?
A:30% TT in advance, 70% TT before shipment Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that make new products according to your requirements.
