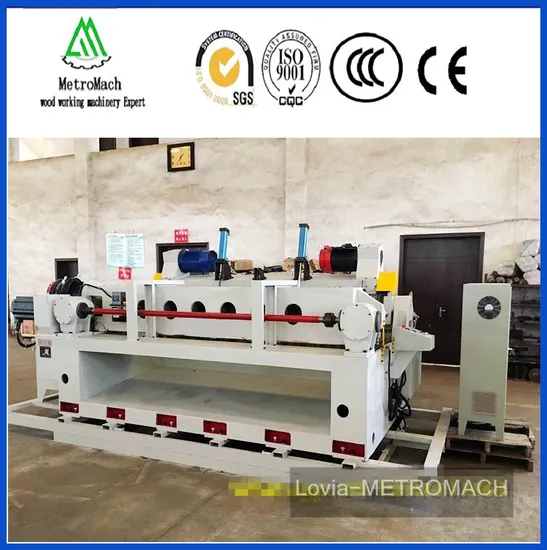

2600mm Spindle Less Veneer Peeling Lathe with Mitsubishi Servo System

Product Description

Machine Features
1. Casting iron body ensure long long service life, no deformation and stale working performance.
2. Thickness tolerance ≤0.05mm. Both veneer sides are smooth.
3. Automatic electrical lubrication system.
4. Japan NSK bearings.
5. Japan Mitsubishi servo motor . PLC control. both ensure great performance.
6. Hydraulic knife changing system, more easy to operate.
7. German Siemens motor is available for your choce.

Max. peeling length	2600mm
Max. peeling diameter	500mm
Diameter of lef log	35mm
Veneer Thickness range	0.5~3.5mm
Peeling speed	40~90m/min,speed adjustable
Feeding motor power	11kw, Japan Mitsubishi Servo motor
Main motor power	2x15kw,
Total machine motor	48kw
Machine Weight	8500kgs
Machine Structure	Fine Cast iron body
Hydraulic knife holder	Option

Packing and Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
