Efficient M500 Crane Type Five Axis CNC Machining Center Solutions

Product Description

Product Description
Product Parameters

Item	unit	M500	M620
Travels
Max.rotation diameter of the workpiece	mm	Ø650	Ø700
Max.height of workpiece	mm	400	400
Distance from spindle end to worktable	mm	150-650	150-650
X-axis	mm	650	700
Y-axis	mm	700	700
Z-axis	mm	500	500
Worktable
Disk size	mm	Ø500	Ø620
Max.weight on worktable(horizontal/inclined)	kg	600/300	800/400
A/C axis angle range	°	±110/360	±110/360
Maximum speed of A/C axis	rpm	200	200
A/C axis drive mode		DDR	DDR
Rated torque of A/C axis	Nm	600/300	900/450
A/C axis positioning accuracy	"	10	10
Repetitive positioning accuracy of A/C axis	"	8	8
Spindle
Spindle specification		HSK A63	HSK A63
Spindle drive		electric spindle	electric spindle
Max.speed of spindle	rpm	20000	20000
Spindle power	kw	11/15	11/15
Three axis power
X axis rail servo motor	kw	4.0	4.0
Y axis rail servo motor	kw	3.0*2	3.0*2
Z axis rail servo motor	kw	4.0	4.0
Rail screw
X-axis rail specification		45roller	45roller
Y-axis rail specification		45roller	45roller
Z-axis rail specification		45roller	45roller
Specification of X-axis ball screw		4510 Hollow screw	4510 Hollow screw
Specification of Y-axis ball screw		4510 Hollow screw (Dual drive)	4510 Hollow screw (Dual drive)
Specification of Z-axis ball screw		4510 Hollow screw	4510 Hollow screw
Rapid Speed
X/Y/Z axis rapid speed	m/min	30/30/30	30/30/30
ATC Auto Tool Magazine
Tool taper		HSK A63	HSK A63
Tools capacity	pcs	40T	40T
Maximum tool diameter(no adjacent tool)	mm	75/120	75/120
Maximum tool length	mm	300	300
Maximum tool weight	kg	8	8
VDI3441
(VDI3441) Positioning	mm	P0.006	P0.006
(VDI3441) Repeatability	mm	Ps0.004	Ps0.004
Basic parameters
Dimension(L*W*)	mm	3697*3030	3697*3030
Mechine height	mm	3275	3275
Mechine weight	kg	10500	10500

Standard proximity and function
1.FANUC 0i-MF Plus(1)4+1 TCP control system		11.Handwheel
2.HSK A63-155-20000rpm electric spindle		12.Work light
3.Five axis rotary table		13. Warm light
4.Spindle blushing		14.Transformer
5.Spindle blushing		15.Water gun
6.Cutting coolant system		16.Air gun
7.Tank and waterbox		17.Rigid tapping
8.Automatic lubrication system		18.Manual loosening device
9.Telescopic cover of triaxial rail		19.Presetter
10.Heat exchanger		20.40T chain tool magazine
		21.Chain type chip conveyor

OUT LOOK SIZE

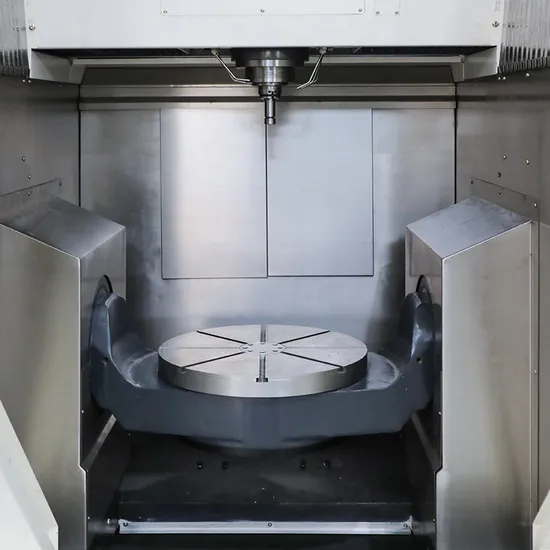

Detailed Photos
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
