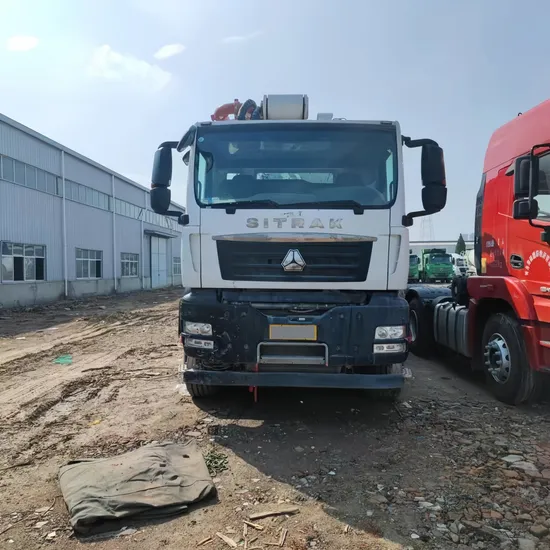

Used 69m Xg Concrete Pump Truck for Concrete Pouring

Product Description

Product Description
Basic data:
The XG HB69V is a 69-meter truck-mounted concrete pump truck designed for efficient and reliable concrete placement in construction projects. It is known for its high efficiency, reliability, power, adaptability, smart control, smooth rotation, powerful swing, lightweight design, safe driving, rich configuration, user-friendliness, and easy maintenance. Item Unit HB69V

Outline dimension	mm	16000×2500×4000
Overall weight	kg	46000

Key Features:
1. Efficient Pumping System: The HB69V offers more efficient pumping with a reliable system, stronger power, and improved adaptability.
2. Smart Control: Equipped with smart control systems for easier operation and maintenance.
3. Smooth Rotation and Powerful Swing: The pump truck features smooth rotation capabilities and a powerful swing function.
4. Lightweight Design: Designed with a lightweight structure for better fuel efficiency and maneuverability.
5. Safety and Rich Configuration: The HB69V prioritizes safety with a rich configuration of features to enhance the user experience. Detailed Photos
Product Parameters
Category Item Unit HB69V

Overall	Outline dimension	mm	16000×2500×4000
Overall	Overall weight	kg	46000
Chassis	Model	-	Mercedes-Benz Actros
Chassis	Wheelbase	mm	3200 + 1350
Chassis	Max. speed	km/h	85
Chassis	Max. power	kW	360
Chassis	Emission standard	-	Euro VI
Pumping system	Theoretical output	m³/h	180
Pumping system	Concrete pumping pressure	MPa	12
Pumping system	Theoretical pumping times	Times/min	22 - 24
Pumping system	Delivery cylinder diameter × stroke	mm	φ260×2200
Pumping system	Max. reach height	m	68
Pumping system	Boom type	-	7RZ
Outrigger	Outrigger type	-	H type
Others	Control method	-	Manual/remote control
Others	Volume of water box	L	1000
Others	Intelligent technologies	-	Intelligent fabric, precise control of boom end trajectory, anti-rollover with full-range monitoring of outrigger expansion and contraction
Others	Energy-saving technology	-	Power self-adaptive energy-saving, reducing fuel consumption by 15%
Others	Structural design	-	Use of imported high-strength steel plate, veneer splicing process, passed German Duisburg welding quality system certification
