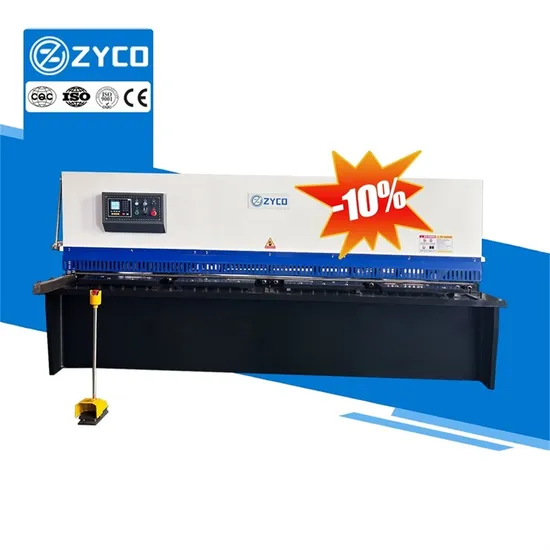

Energy Save QC12K Shearing Machine Shear with Quality Assurance 8mmx4m

Product Description

Product Description
CNC hydraulic swing shearing machine is a machine that uses one blade to make reciprocating linear motion relative to another blade to shear the plate. It uses the moving upper blade and the fixed lower blade, and adopts a reasonable blade gap to apply shear force to metal plates of various thicknesses, so that the plates are broken and separated according to the required size.CNC CONTROL SYSTEMView More Products,click here...High-precision backguage System Stable performance component Pressure cylinder Valve group Workbench

NO.	Component Name	Brand
1	Controller	Estun E21S, China Nanjing(Optional) Easycat EC07, China(Optional) ELGO P40T, Germany
2	Main Motor	BEIDE Siemens Motor
3	Hydraulic system	RexRoth, Germany
4	Oil pump	Sunny, America
5	Electrical components	Schneder, France
6	Reducer	Estun, China Nanjing
7	Ball screw linear guide rail	HIWIN, China Taiwan
8	Hydro-cylinder	Taifen, China Shandong
9	Bear	NSK, Japan

Item		Unit	4X2500	6X3200	8X3200	8x4000
Cutting Capacity	<450N/mm2	mm	4	6	8	8
	<700N/mm2	mm	2	3	4	4
Cutting Length		mm	2500	3200	3200	4000
Throat Depth		mm	150
Cutting Angle		degree	1º30'
Blade Length		mm	2600	3300	3300	4100
SPM		times / min	8-20	8-20	8-20	8-15
Back Gauge	Distance	mm	8-500	8-500	8-500	8-500
	Speed	mm / sec	150
Sliding Front Arms	Quantity	pcs.	3	3	3	4
	Length	mm	800
Main Motor Power		KW	5.5	5.5	7.5	7.5
Size ( L x W x H )		mm	3100x1600x1600	3800x1700x1700
Weight		KG	3500	6000	7200	8400

The shearing machine adopts all-steel welded structure, and is subjected to vibration aging and heat treatment to eliminate internal stress, which has a longer service life. The solid V-shaped frame and shear beam can compensate for the deformation during the cutting process, ensuring stability and cutting line accuracy. The cylinder, shear beam and blade are perfectly aligned with the lower blade, which can be repeated with high accuracy.Quality is at the heart of everything we do at NANJING ZYCO CNC MACHINERY CO.,LTD. As a leading manufacturer of bending and shearing machines, we adhere to the highest standards of quality control throughout our production process. Each machine is rigorously tested to ensure it meets our stringent performance criteria. Our commitment to quality means that our clients can rely on our machines for durability, accuracy, and superior performance in their sheet metal processing needs.FAQ:
1. Are you a manufacturer? Can we visit your factory?
We are a manufacturer, located in Anhui, China. We have our own product design team.
You are welcome to visit our factory and check the quality of our machines on site, any problems will be solved on site at the first time.
2. What are the advantages of your machines? How can I trust the quality of your products?
The main configuration is imported high-quality products, and the professional product quality inspection team ensures the top quality, precision and life of the machine.
For example, Germany Bonsch Rexroth Valve Group, Germany Siemens Main Motor, Schneder Electric System, etc.
Once the test is qualified, our machine will be sent out. So the quality of our products is stable and reliable.
3. After placing an order, can you update the production process information in time?
After confirming your order, we will update you the production details by email and photos.
4. Can we be your agent?
Yes, we are looking for global agents, we will help agents to perfect the market and provide all services, such as machine technical problems or other after-sales problems, at the same time, you can get big discounts and commissions.
5. What payment methods do you accept?
You can pay to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance against copy of B/L.
6. What is the product warranty?
We offer warranty on our materials and workmanship. Our commitment is to make you satisfied with our products. Whether warranty or not, our company culture is to solve all customer problems and make everyone satisfied.
7. How about the shipping cost?
The shipping cost depends on the delivery method you choose. Express delivery is usually the fastest but also the most expensive way. For bulk goods, sea shipping is the best solution. We can only give you the exact shipping cost after we know the details of quantity, weight and method. Please contact us for more information.
8. Do you accept customer logos and customization?
We accept all kinds of customization, including logos and machines.
