General Manual Operating Table for Surgical Procedures and Medical Use

Product Description

Detailed Photos

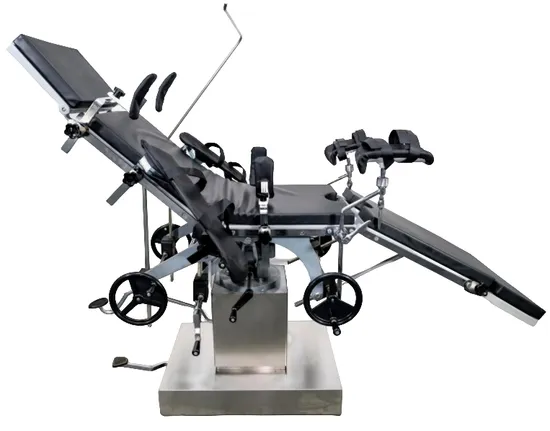

Product Description Side-operated type comprehensive operating table
PRODUCT CHARACTERISTICS
01. There are one back plate adjustment handwheel and one leg plate control handwheel on the left and right sides of the operating table. The positions of the back plate and leg plate can be controlled whether on the left or right side of the operating table;
02. On the right side of the operating table, there is a side tilt adjustment crank that controls the left or right tilt of the operating table and a lumbar adjustment crank that controls the movement of the lumbar board;
03. The forward and backward tilt adjustment handle that controls the forward or backward tilt of the operating table is installed on the right side of the operating table. This handle can also be removed and replaced for operation on the left side of the operating table;
04. The lifting and lowering of the operating table is adjusted by borrowing the oil pump structure and imported hydraulic tamping. When leaving the factory, the oil in the oil pump is extracted and installed in a bucket. The oil pump cannot be raised. The user needs to slowly add the oil in the oil bucket from the funnel into the oil pump (after refueling). The oil pipe and funnel can be removed). When the table rises, you can continuously step on the oil pump pedal. When the table rises to the highest point, it can automatically stop rising. When the table is lowering, you can step on the oil pump pedal to the lowest position, and the table will slowly lower;
05. The base of this bed is equipped with swivel casters for easy movement. It is controlled by a landing mechanism. The bed can be fixed or moved using the same foot. When the foot is stepped down, the rotating casters in the chassis are lowered, the chassis is lifted upward, and the bed can be pushed. Release the foot and the bed is on the ground fixed.
The main technical parameters

Table front and back tilt angle	Front tilt≥55°,back tilt≥35°
Table left and right tilt angle	Left tilt≥25°,Right tilt≥25°
Back plate folding angle	Upward bend≥85°,downward bend≥10°
Table surface Specification	Length≥2100mm,Width≥480mm(excluding side guide rails)
The minimum operating table	≤800mm(Mattress not included)
Waist plate rise	≥120mm
Leg plate folding angle	Downward bend≥90°
Lifting stroke	≥240mm
Head plate (260x400)	Upward bend/downward bend ≥90°,Extend or remove

Company Profile Zhejiang Hongheng Medical Technology Co., Ltd. was established in 2022 (hereinafter referred to as Hongheng Medical). It was initiated by Mr. Zheng Jindi, an industrialist. Fangli Industry and Trade (Group) Co., Ltd. is an innovative enterprise that mainly acquires, merges and reorganizes, and specializes in independent design, A high-tech enterprise that produces and sells medical operating beds and other equipment is an enterprise that uses aerospace high-tech carbon fiber composite materials in the production of medical equipment. The main products are multi-functional series of imaging operation bed, orthopedic imaging operation bed, spinal surgery imaging operation bed, urology imaging operation bed, microscopic neurosurgery imaging operation bed, interventional imaging operation bed, X-ray diagnostic film bed, etc.
