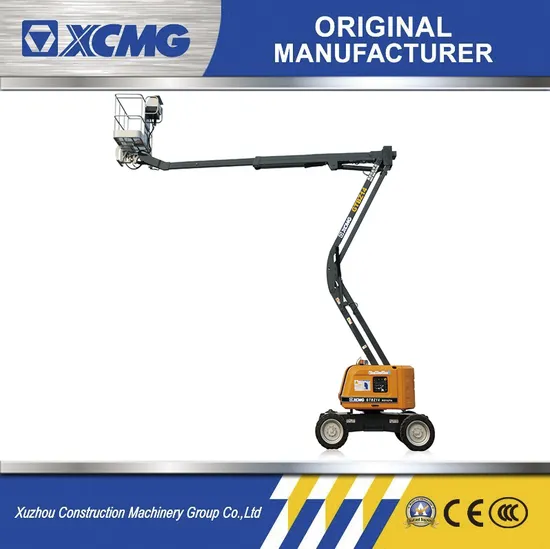

XCMG Hydraulic Lift 14m-Level Gtbz14j Used Articulating Aerial Work Platform

Product Description

XCMG Hydraulic lift 14m-level GTBZ14J Used Articulating Aerial Work Platform. XCMG 14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.
1.Flexibility and efficiency
"Σ-type" double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range;Narrow-type rotary table with compact structurecanachieve "zero tail wagging" and improve operation efficiency.
2.Super strong site adaptability
Cross-country type chassis, four-wheel drive system, pouring-type cross-country wide tyre, full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.
3.Advanced performance, safety and reliability
Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing, safety speed limit, flexibility start-stop technology, etc. are provided.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Description	Unit	Parameter value
Overall length	mm	6690
Overall width	mm	2260
Overall Height	mm	2130
Wheel Base	mm	2100
Maximum Working Height	m	15.75
Maximum Platform Height	m	14.05
Maximum Working Range	m	8.22
Maximum Load Capacity	kg	230
1stBoom luffing Range	°	0~+60
2ndBoom luffing Range	°	-8~+75
Crank Arm Luffing Range	°	-60~+80
Rotation Angle of Rotating Platform	°	355
Maximum Tail Wagging	mm	0
Platform Size	mm	1830×760×1150
Platform turning angle	°	180
Total Weight	kg	6900
Maximum Travel Speed	km/h	6.1
Minimum Turning Radius	m	4.5
Minimum Ground Clearance	mm	250
Maximum Grade Ability	%	45
Tire Specification		315/55D20
Engine Model		Perkins 404D-22
Rated Power of Engine	kW/(r/min)	38/(3000)

Product Show
