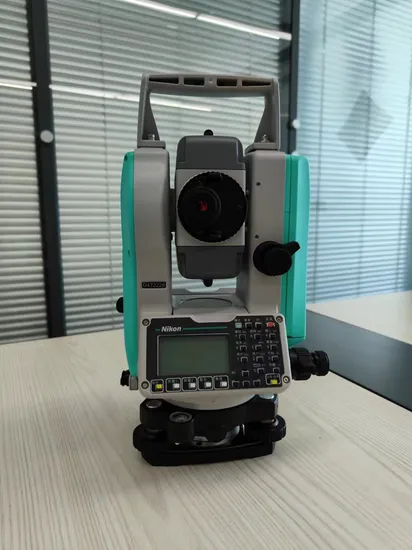

Nikon N2 Total Station Engineering Surveying Original Genuine

Product Description

Nikon N2 Total Station Engineering Surveying and Mapping Instrument Original GenuinePlace of Origin:
Japan
Brand Name:
Nikon
Model Number:
Nikon N2
Product presentation
2020 New biaxial evolution
Nikon N series prism full station, new evolutionary biaxis compensation.
NIKON original, all-machine made in Japan, the original factory warranty, to provide accurate and stable full station for measuring customers.
Simple NIKON operation interface
Traditional Chinese display interface, the operation mode continues the traditional Nikon, easy to understand and easy to use, in N / K 2 second machine with dual panel display design, more convenient to use.
Large display screen with simple operation interface, 128 * 64 large LCD screen, so that you in a variety of environments, can clearly display data information.
High-precision ranging function and speed
Optical wave ranging mode ± (2 + 2ppmxD) mm, prism free ranging mode ± (3 + 2ppmxD) mm, fast ranging only 1.1 seconds, the distance resolution to 0.1mm. The Angle measurement uses the incremental dial, the accuracy of the DIN 2 "and the DIN 5" two models are available, the minimum reading can be displayed to 1 ".
High-resolved NIKON ED 30X high-rate lens
With a 30 x high rate telescope, it carries a linear focusing mechanism that greatly improves the long and short distance focus. With the Nikon optical system, advanced ED (low scattering lenses) provide brighter and clearer images, even in low visibility situations such as dusk and dark light. And redesigned the zoom knob to improve the feeling of operation.
IP55 high protection grade, strong and durable
The N / K contains a lightweight electronic rangefinder with a long-life battery. The Nikon N / K contains a battery weighing only 4.9 kg. It also has IP55 grade standard dustproof and waterproof structure, which increases the safety of the site and instrument identification, and chooses the new LLV low light visible bright green as the color of the body.
USB transfer
Built-in 50,000 points of memory space, and 50 working files can be classified and used, can easily check, edit, input, delete, search. Elastic support data format and computer upload download, can be expanded with the latest controller to understand the graphical operation interface.
Diversified forms of charging
The new battery case is designed for the Type-C interface. In addition to the general power socket, you can also use the mobile power supply, car charging, etc., any available power source to charge your instrument at any time.
Convenient data storage and transmission
Convenient Bluetooth wireless transmission, no need to use the transmission line, just need to install the mobile APP and light rely on the instrument, you can get your measurement results on the phone through the NFC function.
Product characteristics
1.Modern industrial design
The performance of speed measurement and ranging has been further improved.
2.The USB-C plug-and-play charger
You can choose to charge the field work in remote areas.
3.Mobile phone NFC matches Bluetooth
Intelligent platform transmission tools to achieve data exchange between internal and external industries.
4.The Chinese onboard program
Add traverse measurement and difference function and reference arc function.
5.Economic and practical
Sturdy and durable
Brand guarantee
1.Good condition (good visibility, cloudy, dawn / dusk, weak ambient brightness)
2.Using exact mode measurements, based on the standard deviation of ISO 17123-4
3.The accuracy of 1.5 to 5 m proximity is ± (5 + 2 ppm D) mm
4.Measurement time may vary with measurement distance and measurement conditions, and specifications are based on the average of repeated measurements
5.Angle accuracy based on ISO 17123-3
6.Battery standard life under 25 C (77 F). Operating time may vary depending on the battery condition and aging. At low temperatures, the operating time may be reduced.
Nikon versatile mechanical full station instrument
Fast, accurate and efficient
Four models are available for you to choose from
2 "and 5" for angular accuracy
Prism and no prism free models

Model	Nikon N 2"	Nikon N 5"	Nikon K 2"	Nikon K 5"
EDM pattern	Prism and prism-free	Prism and prism-free	Only prism	Only prism
Display screen	two	Single diameter	two	Single diameter
Laser pointer	√	√	-	-
On-site charging	√	√	√	√
Compatible with mobile applications	√	√	√	√

Technical specifications

Function	Nikon N	Nikon K
Airborne field software	Nikon onboard software	Nikon onboard software
Auto-focusing	No	No
Angle accuracy	2 "Or 5"	2 "Or 5"
Electronic rangefinder: mode	Prism and prism-free	prism
Electronic rangefinder: prism distance	4000 m	4000 m
Electronic rangefinder: prism accuracy	±(2 mm + 2 ppm)	±(2 mm + 2 ppm)
Electronic rangefinder: no prism free distance	600 m	N/A
Electronic rangefinder: prism-free accuracy	±(3 mm + 2 ppm)	N/A
Electronic rangefinder: the measurement principle	Time of flight (TOF) method	Time of flight (TOF) method
Electronic rangefinder: spot size	standard	standard
Electronic rangefinder: measuring interval Exact prism pattern, with repeated measurements	1.1 Seconds	1.1 Seconds
laser designator	Yes	No
To the medium type	optics	optics
Brake type	lock	lock
display	2 "model for dual monochrome display 5" model for a single monochrome display	2 "model for dual monochrome display 5" model for a single monochrome display
memorizer	50000 dot	50000 dot
Tracking light	No	No
Cross wire lighting	No	No
Battery number / hot-swap	1	1
Battery life was measured every 30s for distance / angle	14 Hours	14 Hours
Include battery weight	11.0 lb (5.0 kg)	11.0 lb (5.0 kg)
IP grade	IP55	IP55
Compatible with mobile applications	Android and iOS	Android and iOS
Built-in Bluetooth	Level 2	Level 2
RS232C	No	No
USB port	Yes	Yes

* Full station firmware may need to be updated
