ADSS Supplier Self Supporting 12core 24core 48core 96core 144core Optical Fiber Cable ADSS Asu Outdoor Fiber Optic Cable ADSS

Product Description

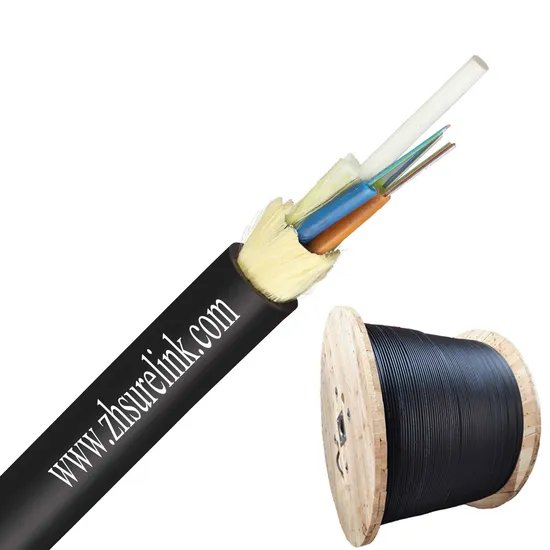

SURELINK ADSS Supplier Self Supporting 12core 24core 48core 96core 144core Optical Fiber Cable ADSS Asu Outdoor Fiber Optic Cable ADSSADSS cable is loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound and stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.
It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.Product Specifications
1. Product structure
2. Technical specification

Model Number	ADSS
Type	Fiber optic cable
Number of Conductors	>=10
Application	Aerial fiber cable
Function	Delivery signal light
Certification	ADSS pass ISO9001,UL,TIL,CE
Sheath material	PE or AT for ass fiber optic cable
Fiber type	OS1/OS2,OM1,OM2,OM3,OM4
Length per roll	2km/3km/4km ADSS fiber
Marketing	printing
Fiber count	2 core to 288 core
Strength member	FRP

3. Features
1. Loose tube design Stable performance and compatibility with all common fiber types2. Self-supportingInstead of Aramid yarn or glass yarn,there is no support or messenger wire required.3.Track-resistant &jacket availableFor 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT)outer sheath.4.Sutable for Aerial self-support installation
4. Performance

Fiber Type	G.652D,125.0+-1.0μm
Mode Field Diameter	9.2+-0.2μm at 1310 nm
Cladding Diameter	125+-1μm
Cladding Non-Circularity	<=1%
Coating Diameter	245+-10μm
Attenuation Coefficient	<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion	<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength	1300-1322nm
PMD Coefficient	<=0.2ps/√km
