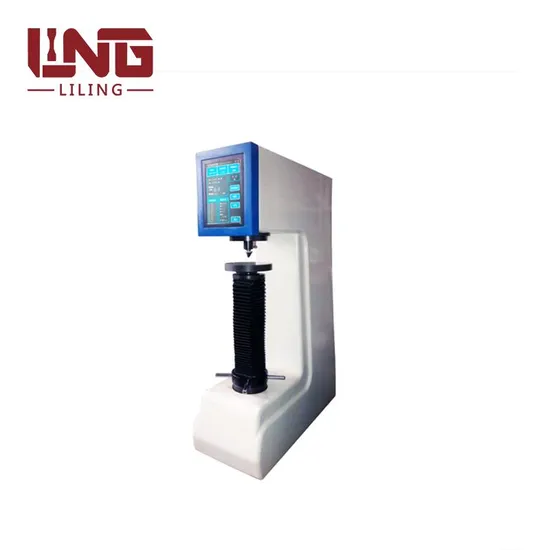

Hb-3000et Touch Screen Electronic Brinell Hardness Tester

Product Description

Digital display automatic high strength bolt detector for hex bolt torque coefficient test
Product Description
HB-3000ET touch screen electronic Brinell hardness tester can display the hardness value on the LCD display LCD screen, and can display and set the test scale, test force, indenter type, load retention time, conversion unit, etc.
1, the fuselage using high-quality cast iron casting molding, with car paint treatment process, round and beautiful appearance;
2, HB-3000ET adopts closed-loop electric loading, with overload and over-bit automatic protection function; Automatic test process, no human error;
3, the electric loading and unloading test force is adopted, the pressure sensor with 5‰ accuracy is used for closed-loop feedback, and the high-speed ARM processor is controlled and can automatically correct the test force;
4, can automatically convert the unit of the full hardness scale;
5, Configure Bluetooth micro printer, and can output data through RS232, USB (optional) interface port;
6, accuracy in line with GB/T231.2-2018, ISO6506-2 and American ASTM E10 standards.
Product Parameters

model	HB-3000ET
Measuring range	5-650HBW
Test force	612.9,980.7,1225.9,1838.8,2451.8,4903.5,7355.3,9807,14710.5,29421N (62.5,100,125,187.5,250,500,750,1000,1500,3000kgf)
Maximum allowable height of specimen	330mm
Distance from the center of the head to the wall	150mm
Hardness resolution	0.1HBW
The power supply	AC 220V,50Hz
Overall dimensions	700*268*980mm
Weight	210kg

Applications1. Measure Brinell hardness of ferrous metal, non-ferrous metal and bearing alloy materials;
2, carbide, carburized steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, tempered steel, annealed steel, bearing steel, etc.
Company ProfileJinan Liling Testing Machine Co., Ltd. is a manufacturer of high-end testing equipment manufactured in China, and a technology-oriented enterprise with independent domestic high-quality technology research and development teams.
The company is located in a provincial-level industrial park, with senior engineers who have been engaged in testing machine design for thirty years and modern electromechanical integration engineering technicians with exquisite technology. We provide users with conventional testing machines that meet national, European, American, and industry standards, as well as design and develop various complex specialized testing equipment and mechanical equipment.
The company's management team collaborates with multiple enterprises, research institutes, and higher education institutions through innovative, open, and win-win thinking, combined with the industry university research model, to provide professional material mechanics solutions.
operation principle:
Survive by quality, develop by science and technology, take customer as the center, create brand by service.
The company has successively obtained ISO9001 certificate, CE certificate, electro-hydraulic servo pressure testing machine, electro-hydraulic servo universal testing machine, electronic universal testing machine and other testing machine category type evaluation certificate, the national steel structure industry Association member unit.
Our company park is close to the west Viaduct of the Second Ring Road, the transportation is very convenient, the park covers an area of nearly 30,000 square meters, including the machining center, production and assembly workshop covers an area of 3,500 square meters, research and development department, technical service department and Marketing Department are located in the park Huayi Science and technology innovation office building, the company's management team with innovative, open and win-win thinking, Combining the model of production, university and research with a number of enterprises, research institutes and universities to provide professional material mechanics solutions.
Adhering to the business philosophy of "survival by quality, development by science and technology, customer-centric, and brand by service", our company has won the trust and support of domestic and foreign customers by creating a high standard production quality management system, advanced new product development center, perfect after-sales service system and efficient after-sales service pro
