China Wenovus Wn-G15 Rotary Tiller for Deep Tilling Soil Preparation Rotary Tiller Crawler Rotary Tiller Trencher Crop Preparation Power Tiller

Product Description

Company Products
Our Advantages
1.Highest levels of vertical integration in the industry
ΦSuperior quality control
ΦStable, responsive supply chain
2.China and Thailand based manufacturing operations and supply chain
ΦAvoids anti-dumping tariffs (country of origin certified as Thailand for select categories)
ΦExcellent Thailand / U.S. government relationship
ΦStable Thailand supply chain and strong industrial base
3.Significant experience in contract manufacturing for well known brands
ΦStrength in maintaining costs low and ability to offer high quality competitively priced finished products to
ΦSupport channel partner brands
4.Wide range of gas and battery outdoor power equipment product categories
ΦMore than 10 categories in production, and adding more
ΦConfigurable products to customize solutions for retail and OEM customers
Product Description
1.G15 crawler rotary cultivator can be rotary farming, ridging, ditching, soil cultivation, weeding and other operations. Suitable for mountain, hills, orchards, vegetable gardens and greenhouses and other rotary farming and pastoral management operations.
2. The whole machine structure is compact, novel shape, length width and height is only 285×133×128cm (with rotary tiller), weight is only 630 kg.
3.the configuration of high pattern triangle track, grounding pressure is small, wetland does not slip, paddy field does not sink, suitable for paddy field and various dry land operations.
4. The outer width of the track is only 1 meter, suitable for driving on the country road, and good passability.
5. The steering wheel is designed to help with easy steering, automatic correction, soft and comfortable control.
6. Front driving position and low center of gravity design, greatly improve the driving comfort.
7. Rear engine and full coverage of heat insulation noise reduction and shock absorption design, effectively reduce the impact of noise and vibration on the driver.
8. The patent is usually open and clutch, safe and reliable.
9. There is a control handle in front of the machine, which can be operated by walking hand, and it is safer to climb down the slope.
10. The hydraulic lifting height is 35cm, which effectively improves the obstacle crossing ability of hills and mountains.
11. Independently designed gearbox, gear six first two backwards, a variety of speeds to choose from, can meet the needs of multiple scenarios.
12. With tractor three-point suspension design, it can easily and quickly switch agricultural machinery.
13. The rotary tiller adopts the design of through shaft, small load and no leakage till.

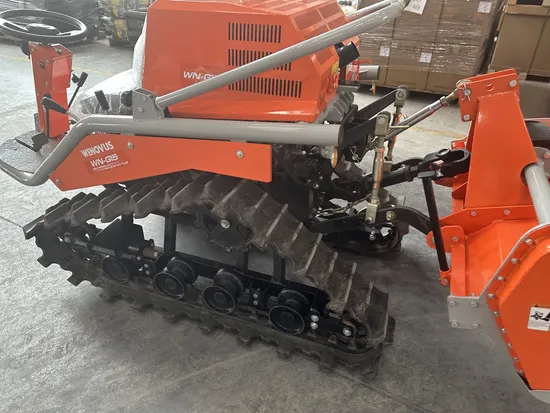

Detailed Photos
Product Parameters

MODEL NAME	WN-G15
ENGINE	WN1100F
Rated power(kw)	9.2
Displacement(cc)	668
Track	High pattern triangular track
Track gauge(mm)	700
Ground clearance(mm)	350
Dimension(mm)	2850×1150×1280
Net weight(kg)	620
Gear	6 front 2 reverse(2 x 3 forward 1 reverse)
Steering operation type	Steering wheel
Travel brake	Internal-expanding type
Parking braking	Internal-expanding type
Accesorie connection type	Three point suspension
Power output shaft	Nominal diameter 35, 6-tooth rectangular spline
Transmission mode	Side chain
Tilling width(mm)	1000
Tilling depth(mm) ≥120	≥120
