Heavy Duty Universal Milling Machine (Lunan milling machine)
| US$13,251.00-19,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TUM1760
Type
Open-Sided Milling Machine
Object
Sheet
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Table Size
1700X400mm
Max. Loading Weight
400kg
Spindle Taper
ISO50
Table Swivel
45 Degree
Xyz Axis Travel
860X350X400mm
T-Slot
3/18/70mm
Main Motor
4kw
Spindle Speeds
60-1700 Rpm Vertical
Transport Package
2150X2100X2250 mm
Specification
2500kgs
Trademark
TOKMC
Origin
Shandong
HS Code
84595900
Production Capacity
100 Sets Per Year
Packaging & Delivery
Package Size
215.00cm * 210.00cm * 225.00cm
Package Gross Weight
2500.000kg
Product Description
Fresador ,Horizontal Column-and-Knee Type Milling Machine,universal milling machine.Feature :
Hardened and ground table surface Spindle Taper ISO50
SAFETY Electrical system
One central panel
SEASY MAINTENANCE
1700x400Mm work table
X axis rapid feed 1800 mm/min
table swivel 45 degree
X,Y,Z axis travel 900x400x405mm
T-slot 3/18/70mm
Column guideway Rectangle
The machine is composed of pedestal, column, two-section revolving head, ram, operating platform, slide, rise-and-fall slide,
cooling system and electric system.
| ITEM | TUM1760 |
| Spindle taper | ISO50(V) ISO50(H) |
| Distance from spindle to table | 30-405mm |
| Spindle speeds | 12steps 60-1700(V) r.p.m. 12steps 60-1800(H) r.p.m |
| Table size | 1700x400mm |
| Max. Rotations angle of table | ±45° |
| Table travel (X/Y/Z) | 900x400x405mm |
| Feeding travel (X/Y/Z) | 860x350x400mm |
| Feeding rang of longitudinal travel | 8steps 30~600mm/min |
| Feeding rang of cross travel | 8steps22~410mm/min |
| Feeding rang of vertical travel | 8steps 15~220mm/min |
| X-axis rapid feed speed | 1800mm/min |
| Y-axis rapid feed speed | 1300 mm/min |
| Z-axis rapid feed speed | 600mm/min |
| Feed motor | 1.5KW |
| Max. Weight of work piece | 400KGS |
| T-slot number/width/distance | 3/18mm/70mm |
| Column guide way | Rectangular guideway |
| Cross slide way of table | Rectangular guideway |
| Longitudinal slide way of table | Dovetails guideway |
| Main motor | 4KW(V ) 4KW(H) |
| Coolant pump power | 90W |
| Package size | 2150x2100x2250 mm |
| N.W./G.W. | 2650/2850KGS |
Accuracy testing
Gear box transmission on XYZ axes
Milling machine accessories, wrench, horizontal arbor, draw bar, milling chuck, drilling chuck,
Vertical parts
Electrical Auto lubrication system , Digital readout guideway on X,Y,Z axis
Ce Electrical system, Touch-stop on X axis work table

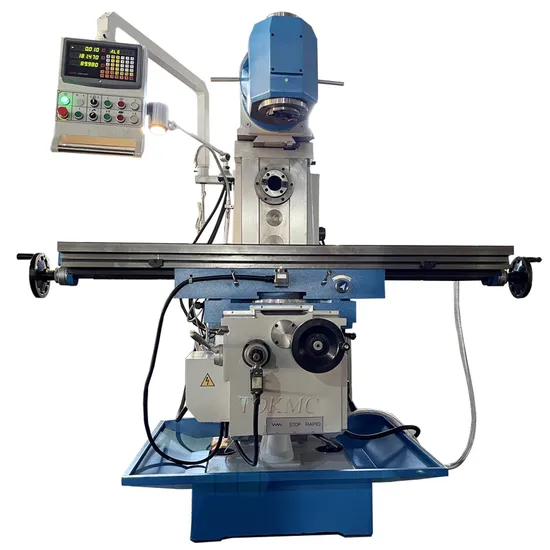

Whole size milling machine
Back side
Company Information
FAQ
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ,L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
