Auto Feeding Tractor Pto Driven Nova Tractor Bx52 Chipper, Shredder for Leaves and Branches

Product Description

Product Description
BX series wood chipper is driven by tractor PTO with 4-10 inch chipping capacity,includeing BX42s,BX42r ,BX52r,BX62s,BX62r,BX72r,
and BX92r which is divided into self feeding and hydraulic feeding system.
It has many advantage.
1 Tractor PTO driven,,easy tranport.
2 CE approved,reliable quality
3 Air Vents, Twig Breaker Blower Paddles
4 Opotional hydrauli feedings,logs,branches eg are control fed for continuous chipping
5 Adjustable Chute ,easy operation
Detailed Photos

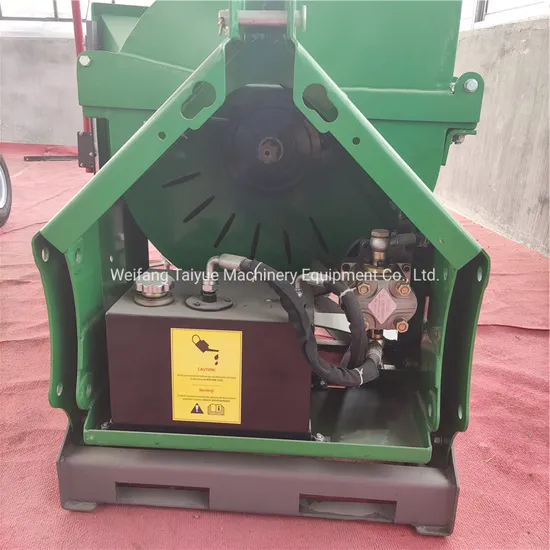

Wood chipper detailed photos
Product Parameters
Wood chipper specification

Model	BX42S/BX42R	BX62 /BX62R	BX72R	BX92R
Drive System	Direct drive, PTO Shaft
HP Range	18-50HP	30-70HP	50-100HP	65-120HP
Chipper Capacity	4 Dia. (max. 12 slab)	6 Dia. (max. 12 slab)	7 Dia. (up to 13 slab)	9 Dia. (up to 14 slab)
Rotor Size	25"	29"	35"	37"
Rotor Knives QTY	4PCS	4PCS	4PCS	4PCS
Knife Type	Hardened tool steel	Hardened tool steel	Hardened tool steel	Hardened tool steel
Knife Size	210*60*9mm	210*60*9mm	240*60*9mm	320*100*16mm
Rotor Weight	50kgs	98kgs	98kgs	242kgs
Rotor thickness	18mm	25mm	25mm	30mm
Feeding System	Manual or Hydraulic	Manual or Hydraulic	Hydraulic	Hydraulic
Mount System	3 Point Hitch	3 Point Hitch	3 Point Hitch	3 Point Hitch
Dimensions (Hopper Folded)	1600*1600*1830mm	1850*1550*2040mm	1850*1550*2040mm	1950*1750*2040mm
Hopper Opening	500 x 500mm	6½ x 12	630 x 630 mm	640 x 640 mm
Discharge Hood Rotation	360°	360°	360°	360°
Discharge Hood Height	60"	74"	84"	87"
Rated RPM	540-1000	540-1000	540-1000	540-1000
Weight	260/430 kgs	480/560 kgs	600 kgs	780 kgs

Packaging & Shipping
Wood chipper packaging and shipping
Company Profile
Weifang Taiyue Machinery Equipment Co., Ltd. is an expert agriculture machinery manufacturer, Based on facilities covering 20, 000
square meter and assets amounting USD10 million. The main products are: wood chippers, include tractorwood chipper such as BX
wood chipper and TH wood chipepr,and self power wood chipper,including deisel wood chipper and ATV towable gasoline wood chipper,
ATV backhoe and other agro implements, etc., which can be customized and processed according to the special requirements of customers,
or OEM production can be provided.
With good quality product, reasonable price, and best after-sale service, we have gained good reputation from all over the world, such as
Europe, North,America, Central and South America, Africa, Australia, New Zealand eg contiments and countires.
Certifications
After Sales Service
We supply 18 months warranty,any problem,free part send by air.
We can also do OEM machines for your needs,such as logo,mixed color,package ,main part eg.
For small quantity,delivery time is 10-15 days.
FAQ
Q. Are you factory or trading company ?
A: we are factory for wood chipper and tractor implements,we can supply different kinds of solution for agriculture with reliable quality
and good price machines.
Q.Which payment can be acceptable ?
A: We could accept the payment by T/T, L/C etc.
Q.How about your production quality and delivery time?
A: We only do long time business coporation by supplying reliable quality,every production will be tested many times
before delivery,and can delivery goods in 10-15 days if small quantity.
Q. How about your company's service?
A: Our company supply 18 months warranty,any problem except operation mistake,will supply free part ,if needed ,will
send engineer to solve this problems overseas.We can also supply the part for machines that used for 6 years,so customer
do not worry machine use in future.
Q: Can you accept customer logo eg requirent?
A:Yes,we can do as customer needs,make logo or label for customers,OEM is availible.
