Energy Saving 10000bph Automatic Pet Beverage Liquid Food Jar Bottle Making Water Plastic Bottles Container Moulding Blowing Blow Molding Machine

Product Description

Energy Saving 10000bph Automatic Pet Beverage Liquid Food Jar Bottle Making Water Plastic Bottles Container Moulding Blowing Blow Molding Machine
1Standard Procedure Automatic Control System for Aseptic Efficient and Rotary Barrel Bottle Water Filling Machine
○.Injection molding machine (All Types)
○.Bottle blowing machine (Semi-automatic/Automatic)
○.Water treatment system (Pure Water/ Mineral Water)
○.Filling machine (Water/Juice/Carbonated Drinks/Yogurt/Tea/Milk/Bag/Cup and so on)
○.Labeling machine (Shrinks Sleeve Labeling Machine/Adhesive Stick Labeling Machine/OPP Hot Melt Labeling Machine)
○.Date printer (Ink jet Printer/Laser Date Printer)
○.PE packing machine (PE Film Shrink Sleeve Package Machine/Carton Package Machine/Half-tray Shrink Wrapping Machine)

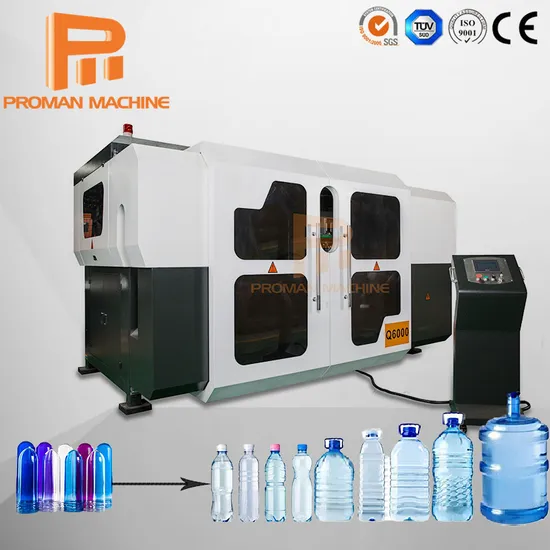

K series linear bottle blowing machine is used in the production of PET water bottles,hot filling bottles,carbonated beverage bottles and edible oil bottles.
Our K series linear bottle blowing machine stretches the preform by controlling the stretching rod by servo motor. The advantage is that it can be stretched in sections, firstly position the preform,ensure the verticality of the preform when stretching then secondary stretching.Ensure uniformity and consistency of stretch of each preform. At the same time, the blower is faster and less energy consumed.
K Series Linear Bottle Blowing Machine Features:
1.K series linear bottle blowing machine,high speed and stable running and precise positioning.It adopts advanced microcomputer PLC control system and can be more stable.
2.The production process is fully automated,with the advantages of low investment,high efficiency,convenient operation,simple maintenance and safety.
3.Servo transmission system, high positioning accuracy, fast speed and good reliability.
4.Suitable for small quantity flexible production,wide range of applications,suitable for customer needs.
5. Energy efficiency is improved, energy is saved, and capacity per unit time is increased.
6. Operation mode is manual or fully automatic,easy to control and operate the HMI.
7. Servo transmission system, high positioning accuracy, fast speed and good reliability.
8. Each mechanical action has a safety self-locking device. When a certain process fails,program will automatically switch to the safe state.
9.Compared with the Q series, the heat and noise are obviously reduced.
10.K series linear bottle blowing machinee bottle rejection rate is less than 0.2%.

Model		K4	K6	K8	K12
Bottle type specification	Cavity	4	6	8	12
	Max.volume	2L	2L	2L	0.75L
	Bottle mouth maximum overall diameter	28-38mm	28-38mm	28-38mm	28-38mm
	Bottle biggest diameter	100mm	100mm	100mm	100mm
	Bottle maximum height	330mm	330mm	330mm	330mm
Capacity	Theory output	6000-8500BPH	9000-12000BPH	14000BPH	24000BPH
Power specification	Light tube quantity	16pcs	32pcs	32pcs	32pcs
	Light tube power	1.25KW	1.25KW	1.5KW	1.75kw
	Maximum heating power	20KW	40kw	48KW	56kw
	All electric machine installation	29KW	49kw	65KW	71kw
	Actual consumption	30%--60%	30%--60%	30%--60%	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2	5-6kg/cm2	5-6kg/cm2	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2	25-45kg/cm2	25-45kg/cm2	25-45kg/cm2
	Higher -pressure gas consumption	6000Ltr/min	8000Ltr/min	12000Ltr/min	24000Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2	5-6 kg/cm2	5-6 kg/cm2	5-6 kg/cm2
	Temperature range	10ºC	10ºC	10ºC	10ºC
	Consumption	8000kcal/hr	8000kcal/hr	12000kcal/hr	12000kcal/hr
	Forzen water flow	88L/min	120L/min	150L/min	220L/min
Machine specification	Machine size	3.6x1.6x1.9	4.8x1.8x1.9	5.8x1.6x1.9	7.6x1.6x1.9
	Machine weight	4.3tons	6.1tons	7.5tons	11.5tons

Component Display:

Certifications: 1.How to tell us your enquiry? You can contact us by email, phone call, fax, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.

2.Where is your factory? Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

3. Do you have any technical supports with your blowing Machine? Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

4.What's your guarantee or the warranty of the quality if we buy your machines? We offer you high quality machines with 1 year guarantee and supply life-long technical support.
We Warmly Welcome Customers All Over The World To Our Company If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.
