Wireless Vibration and Temperature Measuring Instrument for Bearing Analysis
| Negotiable | 5 Pieces (MOQ) |
Basic Info.
Model NO.
RH560
HS Code
9031809090
Production Capacity
100000
Product Description
Main features: Measure both vibration and temperature data Battery lifetime: 2 years (vibration value once every five minutes, time waveform once every 2 hours) CE / EX certification available One key upgrade for firmware Easy installation: no wiring Online training and technical supportMain technical parameters
| RH560 Wireless data collector | |
| Input and output | |
| Communication protocol | 2.4GHz IEEE 802.15.4 |
| Number of RH505 connecting | 30~60 units according to real condition |
| Analysis Frequency(Hz) | 500/1K/2K/5K/10K/15K/20K |
| Number of Sample | 1K~128K (1K=1024) |
| Electrical and Structure Parameter | |
| Power Supply | 220V AC |
| Dimension (L * W * H) | 203 mm × 82 mm × 260 mm |
| Weight | 3 kg |
| Mounting | Hanging or fixation through holder |
| Environmental Parameter | |
| Working Temperature | -40~70 °C |
| IP grade | IP66 |
| RH505 Wireless Vibration and Temperature Integrated Sensor | |
| Vibration Measurement Parameter | |
| Vibration Range | ±50 g |
| Linearity | 1% |
| Frequency Response | 2Hz~15kHz (±3dB) |
| Analysis Frequency(Hz) | 500/1K/2K/5K/10K/15K/20K |
| Number of Sample | 1K~128K (1K=1024) |
| Sampling rate | Max. 51.2KHz |
| Measurement types | Overall value, FFT, time signal, Envelop FFT |
| Temperature Measurement Parameter | |
| Temperature Range | -40~125 °C |
| Temperature Accuracy | ±1 °C |
| Electrical and Structure Parameter | |
| Power Supply | Lithium - thionyl chloride battery, 3.6V, 3.3Ah |
| Communication Method | 2.4GHz IEEE 802.15.4 |
| Dimension | 46 mm × 94 mm (Diameter * Height) |
| Weight | 188 g |
| Environment Parameter | |
| Working Temperature | -40~70 °C |
| IP grade | IP67 |
Certificates

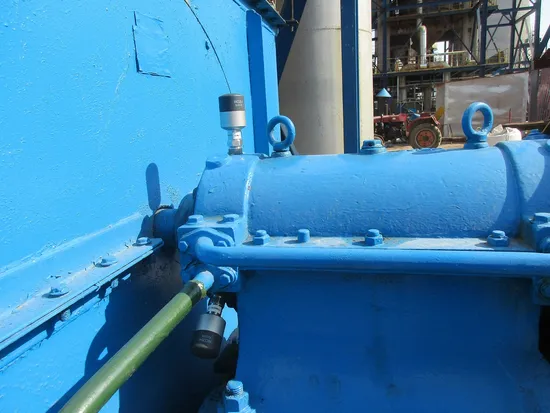

Product application pictures
Remote Diagnosis Center and Laboratory
Exhibition and Customers
RONDS Team
30 professional vibration analysts
Diagnosis experts with more than 20 years' experience
CAT III vibration analysts
CAT II vibration analysts
Intelligent Algorithm--big data team
Algorithm team with 11members, leading by famous doctoral tutor
Big data team with 13 members
