ZICAR high speed timber four sided wood planer 6 spindle wood moulding machine 4 head four side planer machine

Product Description

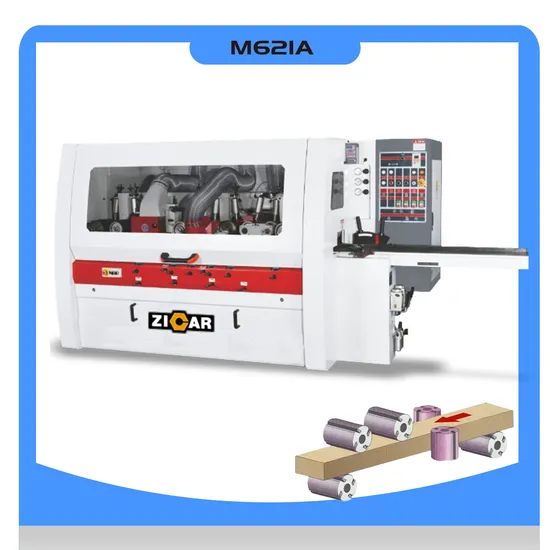

ZICAR Woodworking Six-aixs Four Side Planer M621A

Features
1.The bed is made of high-grade cast iron to ensure the stable performance of the whole machine. 2.Equipped with imported electrical components,high stability. 3.Each shaft is driven by independent motor,cutting effect is very good. 4.Heavy duty design with good material can keep high precision, high stability and high reliability. 5.Magnetic grid sensor for thickness display, the accuracy is much higher than proximity sensor.
Detailed Photos
Internal Structure
Exquisite production process, the internal structure of the machine is tight and orderly
Pneumatic compaction type feed wheel
It can adjust the compaction force in sections, which is conducive to the smooth feeding of different thickness wood
Quick liftable short material device
This structure effectively improves the feeding of short materials more smoothly, and the auxiliary feeding wheel has a transmission function and is more efficient. The feed wheel can be picked up for easy tool change or calibration
Hard Chrome Plated
Work surface and durable,which can ensure the stable performance of the machine
Product Parameters

Model	ZICAR Brand M621A Heavy-duty Four Axis Four-side Planer
Working Width	25-210mm
Working thickness	8-120mm
Feeding speed	10-50m/min
Front working table length	1800mm
Main shaft diameter	40mm
Axial movement	0-20mm
Main shaft revolution	8000r/min
Air pressure	0.6Mpa
1st Lower Shaft	5.5kw
1st Upper Shaft	7.5kw
Left Vertical Shaft	5.5kw
Right Vertical Shaft	5.5kw
2nd Upper Shaft	7.5kw
2nd Lower Shaft	5.5kw
Feeding motor	4kw
Feeding Beam Lifting	0.75kw
General Power	41.75kw
Left Vertical Shaft	125-180mm
Right Vertical Shaft	125-180mm
2nd Upper Shaft	125mm
1st Upper shaft	125-180mm
2nd Upper Shaft	125-180mm
2nd Lower Shaft	125-180mm
Dust outlet Diameter	140mm
Feeding wheel diameter	140mm
Dimension	4100*1630*1750mm
Net Weight	3500kg
