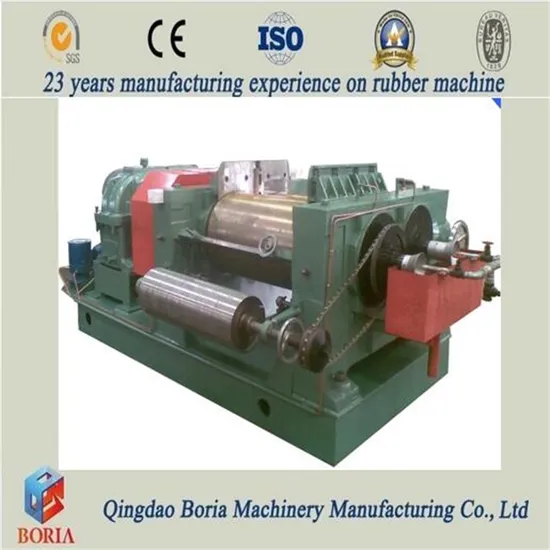

750mm Automatic Rubber Mixing Mill/Open Mill Rubber Mixing Machine/Two Roll Rubber Open Mixing Mill

Product Description

internal mixing machine with CE certificate
I. Introduction
1. The Rubber Machinery is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
2. The roller adjustment device adopts worm gear and worm drive respectively. Electric distance adjustment is optional, which is easy to operate.
3. Drive system: The motor is directly connected to the drum through the reducer ZLY hard tooth surface reducer to drive the rubber mixing drum to rotate, which minimizes the waste of motor power during the transmission process.
.
4. The Rubber Machinery is the advanced new type mixer equipment of rubber and plastics industry, various features are so advanced as the same product of foreign. For seal designing, we get excellent result in sealing and everlasting.
II. technical parameter

Roller diameter	Φ300mm(12")
Working length of roller	750mm(30")
Roller speed ratio	1:1.17
Linear velocity of front roll	15.1m/min
The biggest roller spacing	2-15mm
One feed	15~20kg
Deceleration type	CSY235
Motor type and power	YM-6,22Kw Weihai power for a long time
Structure of the way	Welded base integral
Roll rotation mode	Bearing rotation (dry oil lubrication)
Roll material	Chilled cast iron
Safe braking mode	Hand pull safety switch, motor reverse
The quality of the product	5900kg
Overall dimensions	3900×1700×1800

III. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.
