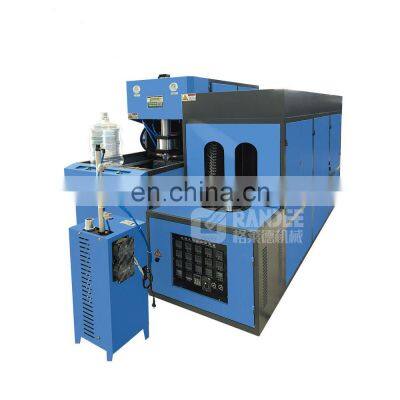

5 Gallon 20 L 15 L PET plastic bottle blow moulding machine / blowing molding equipment

Product Description

Product Description
5 Gallon 20 L 15 L PET plastic bottle blow moulding machine / blowing molding equipment
Product Description
Machine Features:
1.GD-B20L 5 gallon blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
2.Perfect function with economic investment.
3.Small size and compact construction with no space waste.
4.Easy to operate and maintain ,operation by one person .
5.Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
6.We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.
Technology advantage:
1.Special design,high rigid compound die structure
2.Wide adaptability, suitable for every type mould thickness
3.Adjust conveniently
4.No mould rolling out
5.More energy conservation,no need much air supply
6.High burnish principal axis, with very precise polishing, light action and low noise.
7.Short mould stroke,quick action
8.All casting, with long timing process,very small transformation,can meet your precise request 100%.
Main blowing machine :
One Cavity 5 gallon bottle blowing mold
Stretching cylinder
Mould and Finished Products
Heating preform inside device
High pressure compressor with 1.2m³/30KG
Main technical parameter:

Model	GD-20BL
Container	Product material	PET
	Volume	10L-25L(3-5Gallon)
	Theoretical output	90-180PCS/H
	Preform length	15mm-460mm
	Preform inner diameter	φ5mm-200mm
Moulding	Max.mould plate Dimension(L x W)	420x500mm
	Max.mould thickness	40mm
	Clamping force	330KN
	Mould opening stroke	38mm
Machine size and weight	Main machine (L x W x H)	218*77*196cm
	Main machine weight	1000Kg
	Heater (L x W x H)	237*68*165cm
	Heater weight	380Kg
	Power	20kw

Related product

	5 gallon drinking water filling machine It consists of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.
RO System: Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
	Automatic shrink labeling machine for 5 gallon neck label: Capacity: 50-100bottles/min can be chosen Label material: PVC PET OPS, etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm

Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
