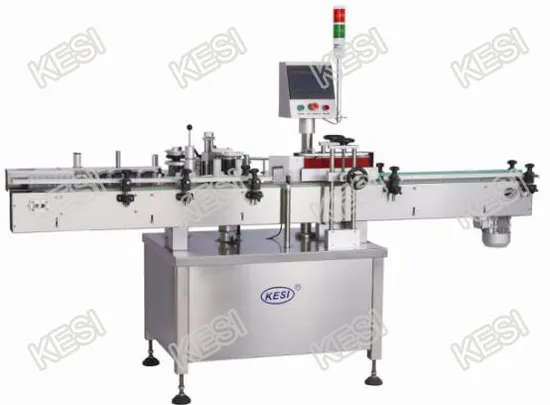

Automatic Wrap-Around Labeling Machine, Round Bottle Labeler,

Product Description

General Introduction
The labeling machine is specialized in round bottles. When labeling, the bottle will automatically rotate to allow the labeling device to apply the pressure for labeling. It's suitable for medicine, food, beverage and chemical industries. It can be used for plastic, glass, metal and other round containers/ bottles. Replacements of a few parts, it also can be used for square bottles.
Characteristics
1. Simple and compact in design.
2. with PLC control System with Feather touch Keyboard and LCD display.
3. Can store up to 16 different programs for setting of different type of bottles.
4. Label release and fixing mechanism to release the label.
5. with Sunx motor or Servo motor drive as per requirement
6. On Line Batch coding (Optional)
7. As the use of optical control devices, power protection devices and other advanced systems of Sunx & Autonics company's, which with a start buffer function, the overall high sensitivity, low-speed torque, speed and stability, voltage stability, the strong ability of anti-interference and strong technical characteristics. Ensure labeling accuracy, stable, reliable and efficient.

Labeling Speed	0~350bottles/minute
Precision	± 1mm
Inner DiameterRoll	φ 76mm
Outer Diameter Roll	φ 300mm
Products Diameter	φ 12mm~100mm
Label Width	10mm~160mm
Lab Label Length	15mm~350mm
Conveyor Direction	L→ R/R→ L
Electrical Requirements	220V50HZ
Power	700W
Dimension	1600mm× 1100mm× 1300mm
The speed according to the length of the label. Special needs upon your request

This labeling machine can be installed into various packing/filling lines as follows:
Partnership:
Shanghai Kesi Packaging Machinery Co., Ltd is the only service provider of German LANGGUTH GmbH in China since 2009.
Certificate:
Company Profile:
Established on 1998, Shanghai Kesi Packaging Machinery Co., Ltd has been devoted to liquid/cream/gel packing line for more than 25 years and owing to dedication of technology improvement, Kesi has become the only partner of German LANGGUTH GmbH in China since 2009, and from then on, hundreds of labeling machines have been made with brand of Langguth and sold in European and Northern American Market.
Our esteemed customers include Coca Cola, Johnson & Johnson, GE Healthcare, Abbott, AkzoNobel, Jahwa, Johnson, ThermoFisher, Sraash, Tonsan, Gold Norman etc.
Our products include and not limited to: 1. Unscrambler for various packing lines 2. Filling Machine 3. Capping Machine 4. Sealing Machine 5. Labelling Machine
6. Carton Packing Machine For detailed information, please visit our company website.
