Preparation of Sorbitol by High Pressure Catalytic Hydrogenation

Product Description

Preparation of Sorbitol by High Pressure Catalytic Hydrogenation!!!
Product Description Sorbitol hydrogenation reactor is mainly applicable to the production steps such as hydrolysis, neutralization, crystal,distillation,and storing etc. in the industries of medicine(materials workshop,synthesizing workshop), chemical industry,food,light industry and so on.The blender covers anchor style,frame style,oar style and turbo style.The rotation mechanism adopts cycloid needle-wheel decelerator and non-pele shift decelerator,the seal device adopts mechanical seal,the heating or cooling adopts the nip-sheath structure,the heating mode adopts the steam,electric heating and conducting heat oil to meet the technology requirement in different work conditions such as acid proof,alkali proof,high-temperature proof,abrasion proof,and erosion proof etc,And may design and make according to the repuirement of customer

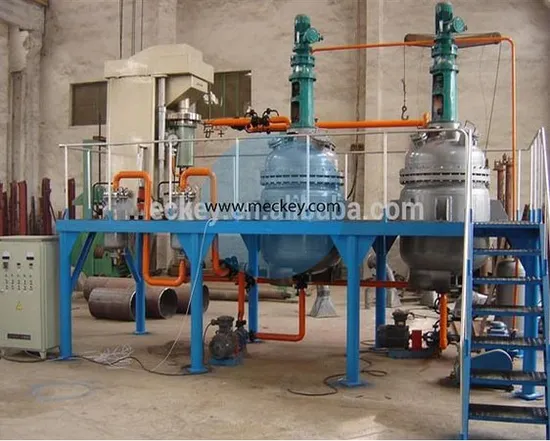

PRODUCT PICTURES

PRODUCT SPE.

Type	MKRT
Volume(L)	0.1~10000L
Working pressure(MPa)	Negative pressure~30
Working temperature(°C)	0~350
Stirring speed(r/min)	20-1500
Motor power(W)	80~15000
Heating power(KW)	0.8~100
Heating type	Electric heating, water recycling, thermal oil, steam, far infrared heating.
Charging type	Charging from above, charging from below.
Shaft	Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media.
Stirring type	Paddle type or anchor type
Seal type	Magnetic seal, mechanical seal, packing seal.
Motor	General DC motor, DC servomotor or explosion-proof motor according to the customers' requirements.
Main material	Kettle material is mainly used 0Cr18Ni9(S30408),00Cr17Ni14Mo2(S31603),0Cr18Ni10Ti(S32168) . And reactor can be produced by can be produced titanium (TA2), nickel material, tantalum material, zirconium, hastelloy (C-276,C-22,B-2) , lined PTFE or lined Ni (Ni6) according to different requirements of media.
Opening port of conventional kettle lid	Gas port with needle valve, liquid port with needle valve and tube inserting the bottom, the charging port for the solid with pipe plug, measuring and controlling temperature port with platinum resistance, security blasting port of pressure gauge with pressure gauge safety explosion-proof device, and inlet and outlet of cooling coil inside the reactor with tap.
Controller Device	Equipped with automatic temperature regulator, temperature control accuracy of ± 1 °C; With speed display and stepless speed regulation function; The heating power can be adjusted to achieve the purpose of automatic thermostat.
Other Accessories	If the user have other special requirements on kettle cover, kettle body opening, the internal structure, high and low pressure, stirring paddle, and other the supporting device (such as condensate return unit, constant feeding tank, receiver, condenser, etc.) ,we can manufacture reactors according to users' requirements.

DESCRIPTION
General process description:
(1) Glucose syrup adjustment: Glucose syrup coming from crystal glucose plant is adjusted to the qualified DS with water.
(2) Decoloring and filtration: The qualified glucose syrup is sent to the decoloring tank for decoloring with active carbon input. After that the AC will be removed by the filter, and the syrup will be sent to the next section.
(3) Ion exchange: Tiny foreign items and bad odor is removed via ion exchanger. Then, the material will be qualified to the hydrogenation section.
(4) Hydrogenation: After burdening, the qualified material is sent to the reactor with aid of high pre. H2. By the reaction, the material will be turned to the crude sorbitol. Then the material is sent to the flash tank for cooling. And then it will be sent to the sedimentation tank.
(5) Sedimentation and filtration: After sedimentation tank, the accelerant is separated from the crude sorbitol, then recycled and reuse. The material is sent to the next section after filtration.
(6) Decoloring and filtration: The crude alcohol is sent to the decoloring tank for decoloring with active carbon input. After that the AC will be removed by the filter, and the syrup will be sent to the next section.
(7) Ion exchange: Tiny foreign items and bad odor is removed via ion exchanger. By this way, the material will be turned to be qualified.
(8) Evaporation: The qualified sorbitol is totally cleaned through safety filter, then it is sent to evaporator for concentrating to reach the required DS as final product.
FAQ 1. Q: If I want to know the price, what info should I provide?
A: You should inform us some basic info , such as: raw material, final product, input capacity or output capacity, specifiction of material and product, etc.
2. Q: If I already have a production line, can I add some machines to increase the capacity?
A: That's viable, pls contact us and we can help you find a suitable solution.
3. Q: How about the automatic level?
A: Depens on you, we have manual/ semi-automatic/ full-automatic control.
4. Q: How about the installation and commissioning?
A: We can send our engineers abroad for the supervision.
5. Q: What's the capacity you can supply of the project?
A: 5000tons per year to Max.
6. Q:What's the brand of your equipments? A: Most of them are made in China with high-quality.
7. Q: Which kind of sorbitol can I produce by your equipments?
A: VC grade sorbitol and daily used sorbitol.
Packaging & Shipping
Sea Worthy Package and according to the customer's requirement.
3-4 months after getting the downpayment.
Our Services

1) Implementations of automation systems, computer 2D/3D modeling and advanced
CAD/CAM technology.
2) Turn-key plants for the production of wheat starch, corn starch, potato starch and
starch derivatives such as glucose, fructose, crystallized glucose, sorbitol,
etc.
3) Professional engineers with ample on-the-job training experience.
4) A team working at site for the guidance of installing, commission works.
5) Low water and low energy consumption design to save your money.
6) Equipments are made of stainless steel, one year warranty, life-long maintenance.
