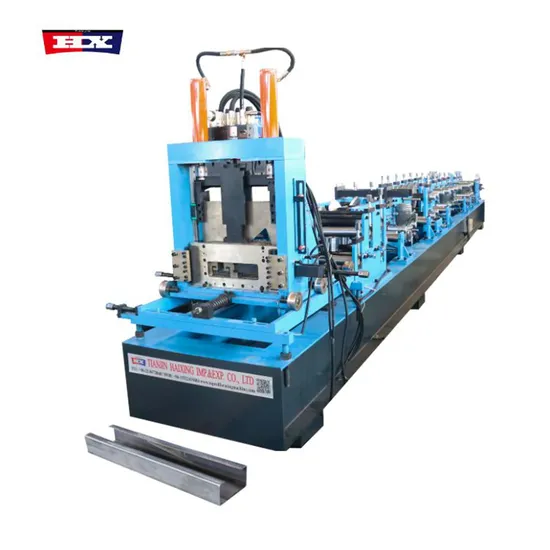

Automatic Galvanized Steel Building Materials Purlin C Channel Profiling Machine CZ Steel Equipment Interchangeable CZ Purlin Roll Forming Machine

Product Description

Product Description
automatic galvanized steel building materials c profiling machine cz steel equipment Interchangeable cz Purlin roll forming machine
Product Specification

automatic galvanized steel building materials c profiling machine cz steel equipment Interchangeable cz Purlin roll forming machine
Formed Material	GI/GL,PPGI/PPGL	Thickness:1-3mm,Width: Design, calculate and check the layout drawing (customized)
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	18 rows(As your requirement)
	Diameterof shaft	70mm solid shaft
	Material of rollers	45#steel,forging with chromium plate 0.05mm,
	Machine body frame	350 H Beams
	Dimension(L*W*H)	9600x1400x1700mm(customize)
	Weight	9Ton
Cutter	Automatic	Cr12 Mov quenched treatment 58ºC-62ºC
	Cutting tolerance	±1mm
Power	MotorPower	22KW
	Hydraulic system power	7.5KW
	Reducer	8#gear reducer
Voltage	380V 50Hz3Phase	As your requirement
chain	1 inch	As your requirement
Control system	Electric Box	Delta(As your requirement)
	Language	English,Spanish,etc. (Support multiple languages)
	PLC	Automatic production of the whole machine.Can set batch,length, quantity,etc
Forming Speed	25m/min	The speed depends on the shape of the tile and the thickness of the material.

Product Parameters
decoiler
1.Capacity:2.5T2.Coil diameter: 470-520mm3.Coil outer diameter:1000mm4.Coil width: 300mm(as customers' request)
Feeding table
Function and advantages: 1.Reduce friction: It can reduce the contact
2.area between the material and the surface of the feeding table, thereby reducing friction and making the material move more easily.
3.Save space and easy to maintain.
Main rollers
1.Roller stations: 18row wheels (according to different design, depend on the profile drawing) 2.Roller materila: 45# steel with quenched treatment and hard chroming
3.Shaft diameter: 70mm, solid.
4.Shaft material: 45# steel with tempering treatment.
5.Wheel speed: 25M/min
Computer Control Cabinet
Function and advantages: 1.The PLC control system will be in charge of the working condition like the speed, cutting length and cutting quantity.
2.Switching languages is easy to operate, the language can be English, Spanish or as required.
3.The touch screen interface is designed to be intuitive.
Cutting head
1.Work type: Hydraulic 2.Driving method: By Cylinder
3.Cutter material : Cr 12/CR12MOV, Heat treatment, HRC58-62°
4.Cutting length tolerance: ±1.0mm
5.Advantages:Energy saving effect, hydraulic technology can achieve higher energy conversion efficiency and reduce energy consumption, the hydraulic drive response speed is fast.
Motor driver
1.Main motor size : 22kw2.Brand: The famous brand from Hangzhou Xuhua or according to customer's need 3.Solenoid valve: 2 groups4.Hydraulic oil: 46#hydraulic oil Color:Blue (or as customer's request)5.Working pressure: 12-1 6Mpa adjustable
Hydraulic station power
Hydraulic pump station provide cutting power
1.Hydraulic station power: 7.5Kw 2.Brand: Taiwan Teco
3.Motor with pump capacity of tank: 120L
4.Advantages:The free included fan helps reduce oil temperature, extend service life, improve system reliability, and prevent overheating protection, reduce energy consumption and reduce maintenance costs.
Wearing parts
We will provide the consumable parts of the automatic galvanized steel building materials c profiling machine cz steel equipment Interchangeable cz Purlin roll forming machine for free!
Packaging & Shipping
1.Nude,with waterproof cloth and stow-wood. lmported computer control system packed with waterproof cloth and card board. 2.This producing line is maintained free of charge for 18 months.When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we willsend the professional technician to debug buyers should take all the fees for technician stravelling abroad.
3.All the parts in the roll forming machine is free to maintain long life. If in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost, if more than 18 month, we also free to maintain the broken parts but for send the newparts, the buyer need bear the express cost.
4.When ship the automatic galvanized steel building materials c profiling machine cz steel equipment Interchangeable cz Purlin roll forming machine, we will also send one set CD and specification (Chi-nese and English) to you with the machine, they can teach you how to operater the machines.
Company Profile
We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, as a professional supplier for roll forming machine have been focusing on this field for 28 years , support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, c purlin roll forming machine, cable tray roll forming machine, and other related construction equipment. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, a two-year warranty, installation and training services, and local service in South America. Cooperating with, 150+ countries & 5,000+ Partners, looking forward to more cooperation with new and old friends from all over the world.
Why choose us

FAQ
Q: Are you a trading company or a factory?A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.Q: Can a machine produce only one style panel profile?A: Not complete. Suitable for automatic galvanized steel building materials c profiling machine cz steel equipment Interchangeable cz Purlin roll forming machine. It can produce more than 3 panels.Q: How long does it take to manufacture the machine?A: In general, the automatic galvanized steel building materials c profiling machine cz steel equipment Interchangeable cz Purlin roll forming machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.Q: Is there quality control when producing the production line?A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.Q: What can you do if the machine broken?A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.Q: What is your strength compared to other suppliers?A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.Q: Can we become your agent abroad?A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
