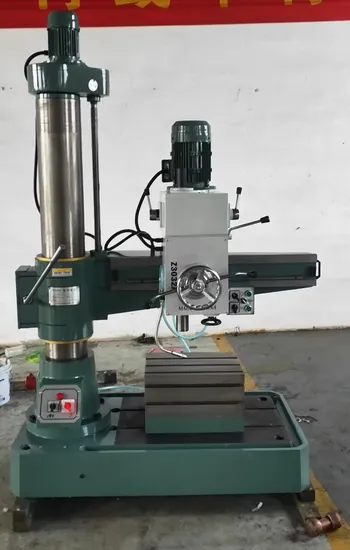

High Quality China Metal Radial Arm Drilling Machine Z3032X10

Product Description

High Quality China Metal Radial Arm Drilling Machine Z3032x10
Product Description
Product description:
1. Appearance beautiful appearance, the overall layout of symmetry and coordination.
2. Adopt mechanical drive, mechanical clamping, mechanical speed change operation is simple.
3. Guide rail after ultra high frequency quenching.
4. Reliable structure, excellent manufacturing, to ensure the accuracy of the machine tool.
5. To increase the machining range of drilling, boring, tapping, threading, countersink flat, drilling, reaming and reaming functions, such as, widely used in large, medium and small enterprises, villages and towns and individual industrial machining.
Main technical parameters:

Specifications	Units	Z3032×10
Max. drilling diameter	mm	Φ32
Distance spindle nose and working surface of base	mm	320-1080
Distance from spindle axis to column surface	mm	270-885
Column diameter	mm	200
Worktable size	mm	475x330x295
Spindle travel	mm	150
Spindle taper		MT4
Spindle speeds range	r/min	65-1000(6 steps)
Spindle feeding range	mm/r	0.10 0.16 0.25(3 steps)
Rocker rotary angle	°	+ 90°
Main motor power	kw	1.5/2.2
Lifting motor power	kw	0.75
Net weight	kg	1080
Overall dimensions(L×W×H)	mm	1400×640×2150

Detailed Photos
