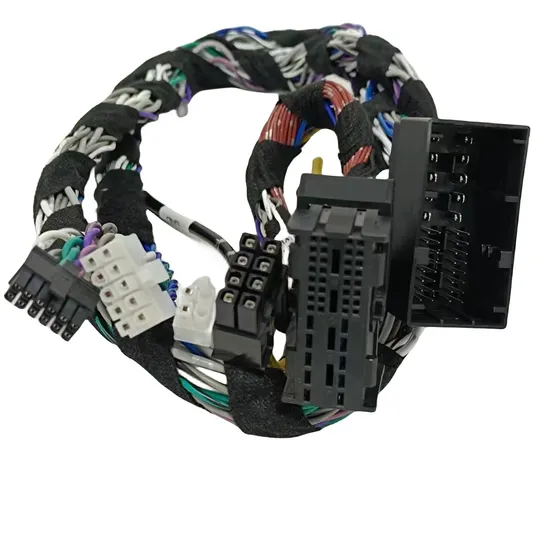

Professional Wire Harness Manufactures Custom Automobile Audio Wiring Harness for BMW

Product Description

Product Description

Product name	DSP Amplifier Wire Harness Automotive Wire Harness Supplier more than 14 Years We Can customize many types of Car Wiring Harness, Welcome to contact us if you have such kind of requirements.Sample is free , Lower MOQ, Reasonable Price, Hight Quality.
Wire length	Length 1.5M,or According to the customers' requirements.
Wire material	PVC wire, Pure copper,Tinned copper,UL1007, UL1015 and AVSS series wire.
	According to the customers' requirements.
Color	white-blue-red-black-brown-yellow-green-pink, etc...
Nominal voltage	12V~ 24V Temperature range:-30ºC~+80ºC
O.D.Tolerance:	±10mm
Wire application	Automotive,home apppliance, headlamp,mechanical and electrical machine,etc...
Order quantity	Small quantity can be accepted, such as 100pcs
Sample	FREE
Lead time	Small orders under 500pcs 10-15days,exceed 1000pcs 15-20 days
Test	100% test before shipment
Payment	T/T, L/C,PayPal,Western Union
Service	OEM and ODM products are acceptable

Detailed Photos
Our company , ShenZhen ZhongJian TianHang Electronics CO, LTD is a professional manufacture of
Customize Automotive Wire Harness. MOQ is 200 Pcs. Two or three sample can ship to you free
(if no need open mold ), and you should send us real product or technical drawing.We can custom the
Automotive Wire Harness with 5 star as the following:
Cable Knowledge
UL 1007
Technical data with UL 1007Rated voltage:300V Rated Temperature:-40ºC-80ºC Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil Voltage withstand test:AC 2.0kV/1min Specifications with UL 1007

Specification	Conductor structure	Conductor outer diameter	Average insulation thickness	Insulation outer diameter	Cable net weight	Maximum conductor DC resistance (20ºC)
		(mm)	(mm)	(mm)	kg/km	Ω/km
26AWG	7/0.16	0.48	0.38	1.3±0.05	2.9	150
24AWG	7/0.20	0.60	0.38	1.5±0.05	3.8	94.2
22AWG	7/0.254	0.76	0.38	1.6±0.05	5.3	59.4
20AWG	7/0.32	0.96	0.38	1.8±0.10	7.5	36.7
18AWG	16/0.254	1.15	0.38	2.0±0.10	10.2	23.0
16AWG	26/0.254	1.49	0.38	2.4±0.10	15.4	14.6

Certificates with UL 1007: CE, Rohs, Reach, ULUL 1015 Technical data with UL 1015 Rated Voltage : 600V
Rated Temperature : 105ºC
Bare or Tinned, Stranded or Solid Conductor
Conductor : 30AWG~1/0AWG
Insulation : Extruded PVC For internal wiring of electronic and electrical equipment. Specifications with UL1015

Specification	Conductor structure	Conductor outer diameter	Average insulation thickness	Maximum conductor DC resistance (20ºC)
		(mm)	(mm)	Ω/km
26AWG	7/0.16	2.05 mm	0.79 mm	45.2 QKM max
24AWG	11/0.16	2.20 mm	0.79 mm	29.3 Q/KM max
22AWG	17/0.16	2.40 mm	0.79 mm	16.7 2/KM max
20AWG	21/0.18	2.55 mm	0.79 mm	10.5 2/KM max
18AWG	34/0.18	2.80 mm	0.79 mm	6.64 2/KM max
16AWG	26/0.255	3.10 mm	0.79 mm	4.18 Q/KM max
14AWG	41/0.255	3.50 mm	0.79 mm	2.62 Q/KM max
12AWG	65/0.255	3.90 mm	0.79 mm	1.65 2/KM max
10AWG	105/0.255	5.10 mm	0.79 mm	1.04 Q/KM max

Certificates with UL 1015: CE, Rohs, Reach, UL
AVSS Japanese Standard Automotive Cable

Production Process:

Certifications
Packaging & Shipping Package: Industrial Standard Carton, bag or the method customer like.Shipping: 1. Door to Door express: FedEx/DHL/TNT/UPS/EMS/SF for samples;
2. Air-freight/ Sea-freight shipment for batch products;3. Delivery terms could be Ex-work, FOB, CNF, CIF, etc;
4. Delivery Time: Small orders under 500pcs is 5-7days,exceed 1000pcs 7-15days.
Our Advantages
After Sales Service 1. 100% testing of all goods before shipmen
2. Warranty Period is 12 month.3. We have professional engineers and can reply your question on Skype or E-mail in time.
FAQ Q1.How can I get product Price List?
A1:Contact us by email,Skype or sent inquiry to us.Q2, Can I get samples to test before place an order? A2: Yes . Samples are available ,and the sample cost is refundableQ3: How does your factory do regarding quality control? A3: Quality is the priority.Q4: What's the best way for shipping?
A4: DHL,Fedex , UPS for small order. Air cargo&Sea shipment for big quantity order.Q5: Can we get support if we want a special outlook and function addition ?
A5: No problem ! Our R&D team will support you develop a new kind and best solution for you !Q6: What is the warranty for your products?
A6: 12 months.
Q7: Product customization Process:1. Provide the correct drawings of the products or the product samples to us.2. Make quotation for customer.
3. Make samples and send sample or pictures to customer for confirm .
4. Order and payment
5. Deliver order .
6. After-sales service.
