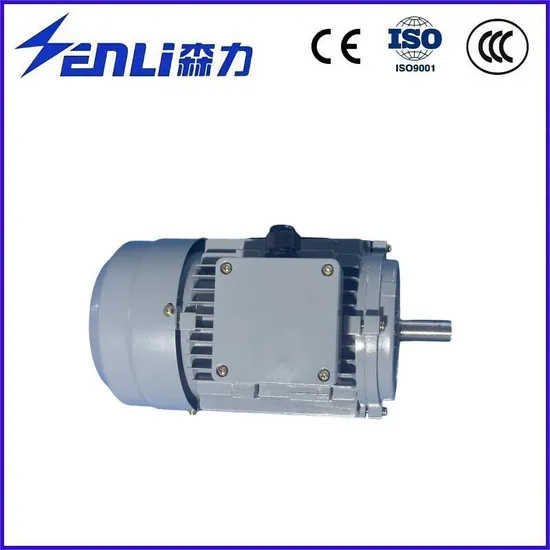

110V 220V 380V 3 Phase Asynchronous Motor for Pump/Compressor/Electrical Fans

Product Description

Product Description
Induction Motor: The most common type of asynchronous motor, there are two types: single-phase induction motor and three-phase induction motor.
1. Frame size: H50-90;
2. Power: 0.025-3KW;
3. Voltage: 110V 220V 230V 240V 380V;
4. Rated Frequency: 50 Hz 60Hz ;
5.Poles: 2/4/6/8
6.Speed: 2800/1400/910/680 r/min
7.Ambient Temperature: -15°C≤0≤40°C
8.Duty: continuous (S1);
9.Insulation Class: E ,B , H ,F ;
10.Protection Class: IP44, IP54;
11.Frame material: Cast iron body , aluminum body
12.Cooling Method: IC411 Standards;
13.Altitude: No more than 1,000 meters above sea level;
14.Certifications: CE, CCC, ISO9001: 2015,SGS. Detailed Photos

Our Advantages
1.Competitive Price:We are a first-hand manufacturer of raw materials. We have our own precision machining workshop, stator wire embedding workshop and motor assembly workshop. We independently complete the process from shaft processing to complete machine assembly.
2.Guaranteed Quality:We have Certification for CE, CCC, ISO9001:2015,energy efficiency ,utility model patents. The motor stators are 100% pure copper enameled wire, cold-rolled silicon steel sheet and the motor housing is aluminum die-casting shell, the overall light and beautiful, not easy to rot, the rotor dynamic balance reaches less than 200 mg, and the shaft concentricity is controlled below 0.05mm. 100% testing after each process and final testing before packing.
3.Delivery time:Normal models about 15-20days , another not normal models need about 30days
4.Manufacturer Strength:The 6000 square meter standardized factory building has a precision machining workshop, stator wire embedding workshop, motor assembly workshop, finished and semi-finished product warehouse.It has automatic winding machines, automatic wire embedding machines, CNC machine tools, CNC grinders, dynamometers, comprehensive testers,gantry image detector and other equipment. It has more than 60 employees and an annual production capacity of 180,000 units.
5.R&D capabilities:10 technicians, 3 of whom have been engaged in the motor industry for more than 18 years.We have our own laboratories, dynamometers, and genuine motor design software. Our annual R&D investment accounts for 10% of our annual sales. We develop more than 20 new products every year. 6.Customization:We can provide many-to-one service. Based on the customer's requirements for the product use environment, the customer's budget and other conditions, we design products that meet different usage scenarios, provide customers with cost-effective motors, and save costs. Customization process: understand the needs - provide parameters and drawings - design plan - confirm the plan - confirm cooperation - mass production - delivery - after-sales service; OEM/ODM customization, specification customization, appearance customization, special shaft customization(such as nickel plating and chrome plating) and color customization can be provided. Product Parameters
Installation Instructions
After Sales Service
Company Profile
Shaoxing Chaoli Motor Co., LTD., formerly Shengzhou Chaoli Motor Factory, was established in 2002, the company is located in Kejin Industrial Park, Changle Town, Shengzhou City, Zhejiang Province.
Business Type:Manufacturer/Factory Company
Main Products: Three Phase Asynchronous Motor,Single Phase Asynchronous ,Motor,Variable Frequency Motor,Brake Motor,Torque Motor,Small Power DC Motor.
Year of Establishment: 2002-03-01
Plant Area: 5500 square meters

FAQ

Q:Are you a manufacturer or a trading company?
A: We are a manufacturer of AC asynchronous motors and DC motors in China.
Q:Where is your factory?
A:Shengzhou, Zhejiang province.
Q:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q:What about delivery time?
A:Normally, 30 days after the receipt of payment.
Q:About shipment?
A:By sea, By air and By express delivery.
Q:About sample?
A:Available.
Q:Do you offer OEM /ODM service?
A:Yes. We accept OEM/ODM service.
