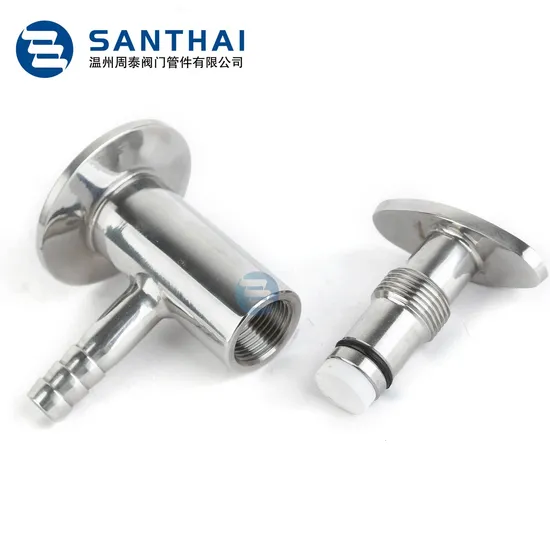

Hygienic Grade Stainless Steel Sanitary Sampling Valve for Beer Sampling

Product Description

Sample valve:
When turn the hand wheel clockwise, the valve shaft and seal rise up. Atthis time, Valve is open for sampling. When turn the hand wheel anti-clockwise, the valve shaft and seal go dowm, at the time, the valve is closed.
Yogurt Sampling Valve:
The valve seat opens inside so that it can avoid opening by accident due to much pressure in the pipes.
The valve is normally closed (through close of spring). the valve is oprn as soon as pushing the handle with hand and closed then loosing up.
The design of completely drainage water is to avoid remains inside the valves.
Feature: 1. 304 stainless steel,316L stainless steel 2. Silicone O-ring plus plunger to assure a leak proof connection 3. Surface finish polish to sanitary standards 4. Recommended usage in wineries 5. End connections available: clamp, thread, weld Technical specification

Material of Product Wetted	316L (DIN-1.4404)
Material of Non-product Wetted	304 (DIN-1.4301)
Seal material	PTFE/VMQ,PTFE/FPM (PV-1),PTFE (PV-2)
	All seal materials comply with FDA 177.2600.
Continuous working temperature	-10ºC/5F-120ºC/248F
Sterilization temperature	150oC (Max 20min)
Working pressure	10bar 145psl
Internal surface	Ra0.8μm
External surface	Shot blasting
Size	DN6/M4,DN8/M4,DN15/W9

Technical Specification:
Conection: thread,clamp,weld;
Max. pressure: 10bar 145psi;
Min. pressure: vacuum;
Temperature: -10 degree - 120 degree;
Body material: AISI304/AISI316L;
Seal material: PTFE(FDA177.2600;
Size: 1/4'' , 3/8'' , 1/2'' , 3/4'' ;
