Copper and Aluminum Cable or Wire Drum Twister Twisting Cabling Machine with Steel Wire Armoring 10%off

Product Description

Drum Twister(With Steel Wire Armoring)
1.Description:
Back twist rate is 0-100%,can be set freely.
Designed for laying up power conductors with 2/3/4/5 round cores and straight or sector shape cores. Optional filling and synchronous operation of wrapping equipment.
Wire armoring can be made by adding wire pay-off and wire pre-twisting device.
Adopts DC induction servo motor drive, production line synchronous operation is controlled by control system .
Freely setting of pitch and twist can be realized.
The machine is provided with HMI+PLC control system, process parameters can be stored, real-time monitoring of operating conditions, simple operation, convenient, fast.

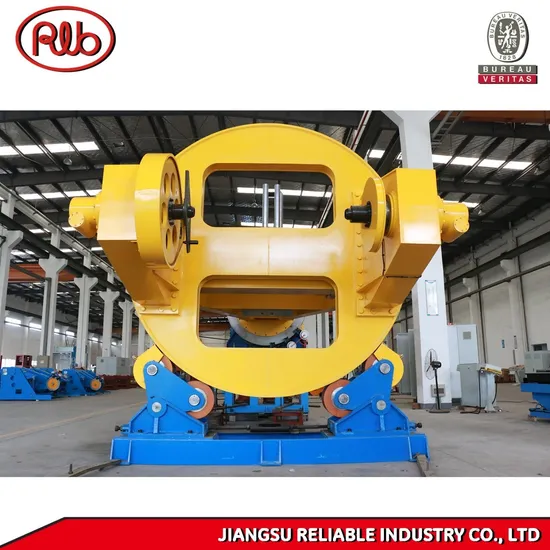

2.Equipment Pictures

Model					3150	3600
Pay Off Reel Φ	1250	1600	1600	1600	2000	2500
Rotating Caterpillar Tread	1000	1000	1500	1500	3000/5000	3000/5000
Take-Up Drum Φ	1600	2000	2250	2600	3150	3600
Armoring Wires	48	60	72	84	96	96
Finished Cable Φ	50	60	80	100	130	130
Rotor Speed	140	110	90	70	40	40

3.Technical Parameters
4.Layout:
5.Application Demonstration:
Provide bobbin pay-off device and coil pay-off device for steel wire for selection.
Optional filling and wrapping equipment , synchronous operation.
