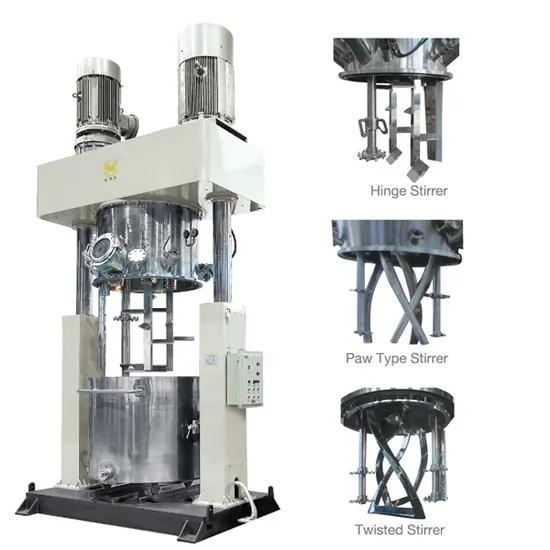

Silicone Case Double Planetary Mixer
| US$78,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DLH-600L
Certification
ISO
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
High Speed
3000 Rpm
Mixer Type
Planetary Mixer
Layout Type
Horizontal
Mixing Drum Shape
Disc
Operating type
Cycle Operating
Transport Package
Wooden Case
Trademark
GMK
Origin
Foshan, Guangdong
Production Capacity
100unit/Season
Product Description
Silicone sealant, Ms, PU sealant mixer Gantry Type Double Planetary Mixer with Disperser1. CHARACTERS
1) Dispersing power mixing
2) High speed
3) Vacuum, cooling and heating function
4) No dead point
5) Suitable for PU sealant, RTV sealant, HTV sealant, Acrylic sealant
6) CN, ISO9001
2. Summary
Planetary dispersing power mixer is a kind of no-dead-spot power mixing and dispersion equipment. It adopts unique stirring mechanism, with bottom vessel fixed and unmoved, with dispersion discs and stirrers making planetary movement of revolution and rotation, with speed adjustment by frequency inverter. It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead spot. An automatic wall scraper mechanism is designed in the vessel, which continuously scrapes the materials adhering to the wall.
The equipment is uniquely sealed, can be pressurized or vacuumized. It is widely used in solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, grinding, dissolving, homogenizing and emulsification, etc., in chemical, light industry, pharmacy, foodstuff, building materials, farm chemical industries, etc. It is an ideal equipment for production of ink, pigment, adhesive, sealant, paste, paste-type material, lubricant, paint, paste cosmetics, emulsion, cream food and additive, etc.
| MODEL | NOMINAL CAPACITY | VACUUM DEGREE | VESSEL TYPE | DISCHARGE MODE |
| DLH-2.5L | 2.5L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-5L | 5L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-10L | 10L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-20L | 20L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-50L | 50L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-100L | 100L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-200L | 200L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-300L | 300L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-600L | 600L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-1100L | 1100L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-1500L | 1500L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| DLH-2000L | 2000L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
