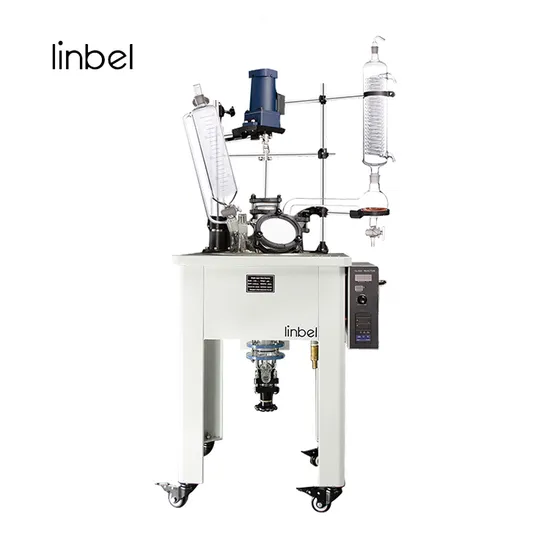

10L Multi-Funtion Single Layer Glass Reactor Manufacturer
| US$1,300.00-1,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
F-10L
Type
Tank Reactor
Material
Glass
Capacity
<50L
Structure
Single Tube
Pressure
Negative
Agitator Model
Paddle Agitator
Tower Reactor Type
Single Layer
Heating
Outside (Inside) Coil Heating
Heat Transfer Structure
Heater Bath
Automatic Grade
Automatic
Condition
New
Name
10L Pharmaceutical and Chemical Vacuum Reactor
Application
Chemical Testing Research
Volume
10L
Heating Method
Electricity Heating
Heating Type
Heating Temperature Control Module
Glass Material
Borosilicate Glass 3.3 (Gg-17)
Machine Type
Single Layer Reactor
Transport Package
Wooden Box
Specification
Double jacketed
Trademark
Linbel
Origin
Shanghai
Production Capacity
1000set/Month
Packaging & Delivery
Package Size
80.00cm * 70.00cm * 200.00cm
Package Gross Weight
100.000kg
Product Description
| Model | F-10L | F-20L | F-30L | F-50L | F-80L | F-100L |
| Stirrer speed | 0-600rpm | |||||
| Bath power | 3KW | 6KW | 6/9KW | |||
| Temp. Range | 0-200ºC ± 0.2ºC | |||||
| PTFE Combined sealing | 12*32*10 | 15*32*10 | ||||
| Controller | Speed digital display / Temperature display | |||||
| Solid inlet port | φ125mm | φ80mm | ||||
| Liquid inlet port | 34# | |||||
| Temperature tube | 24#200mm | 24#230mm | 24#300mm | 24#350mm | 29#800mm | 29#480mm |
| Distillation device | 500ml | 1000ml | ||||
| Collection flask | 5-50L optional | |||||
| Condenser | Vertical double serpentine condenser | |||||
| Constant pressure dorp funnel | 34#1000ml | 34#2000ml | ||||
| Discharge valve | 370mm | 480mm | 600mm | 600mm | 600mm | 650mm |
| Bath drain | Optional | |||||
| Cooling coil | Optional | |||||
| Size(mm) | 640*560*1880 | 690*610*2080 | 750*670*2250 | 780*710*2250 | 850*760*2330 | 850*760*2500 |
| Voltage | 220V/50Hz | 220V/50Hz / 380V/50Hz | ||||
| EX-Proof motor | Optional | |||||
| EX-Proof controller | Optional | |||||
| Cooling coil | Copper cooling coil is optional. | |||||
| SUS Frame, no heating single layer glass reactor is optional. | ||||||
FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
