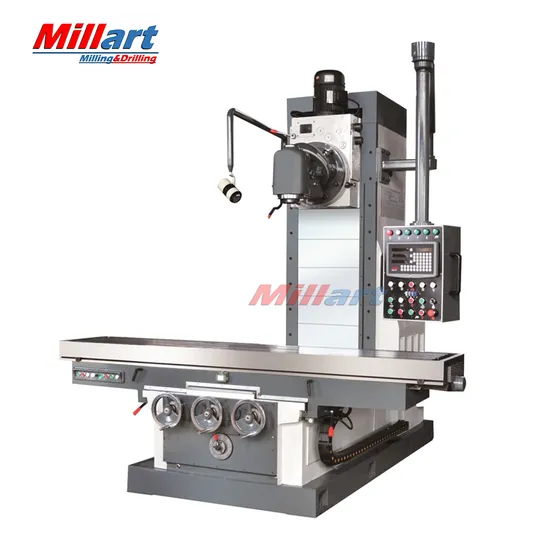

360 Swivel Head Bed Type Milling Machine X718 Price
| US$38,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X718
Type
Worktable Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
2800X500mm
X/Y Axes Travel
2500X1020mm
Spindle Taper
7:24 ISO50
Spindle Motor Power
7.5kw
Z Axis Travel
1090mm
Transport Package
Pallet
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8459699000
Production Capacity
20 PCS/Month
Product Description
360 Swivel Head Bed Type Milling Machine X718 PriceFeature:
3 AXIS TRAVEL CAN REACH 2500X1020X1090MM
MILLING HEAD SWIVEL 360 DEGREES
MAX. SAFETY LOADING OF WORKPIECE CAN REACH 5000KG
STRONG AND STABLE MILLING CAPACITY
Technical parameter:
| Model | units | X718 |
| Table size | mm | 2800x500 |
| Table travel(X,Y) | mm | 2500x1020 |
| Distance from spindle to table surface | mm | 385-1540 |
| Distance from spindle to table surface | mm | 0-1160 |
| Distance spindle to table surface | mm | 0-1090 |
| Number/width/distance of T-slot | mm | 4-20-100 |
| Max.load of table | kg | 5000 |
| Feed speed | mm/min | 22.4-560 |
| Rapid feed speed | mm/min | 1650 |
| Z axes feeding | mm/min | 11.2-280 |
| Z speech axes feeding | mm/min | 825 |
| Spindle taper | 7:24 ISO50 | |
| Spindle speed range | rpm | 36-1340 |
| Spindle speed step | steps | 12 |
| Distance from spindle axis to column | mm | 900 |
| Spindle motor power | kw | 7.5 |
| Overall dimension | mm | 3020×3000×3000 |
| Machine weighe | kg | 9000 |
Standard accessories:
Mill collet chuck kits
Tool holder ISO50
Horizontal mill arbor support
Draw bar
Foundation block
58 pcs Clamping kits
Control penal box
Worktable automatic power feed
Coolant system
Work lamp
Lubricating system
Tools and tool box
Optional accessories:
Universal dividing head F11-200A
Rotary table HV-14
Machine vise QMN16200
Spindle safety protection
