Pnmp Series Turbo-Type PVC Powder Pulverizer Milling Machine

Product Description

PNMP Series Turbo-Type PVC Powder Pulverizer Milling Machine
Application Areas:
PVC Scrap Recycling Pulverizer Mill Machine is designed by our factory using Germany technology and our own production experience. PVC pulverizer machine is used to grind waste SPC floor,PVC ceiling, PVC pipe, PVC profile, PVC marble sheet into fine powder. The capacity can be from 100-900kg/h.
Description:
This PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP pulverizer can reach 100-900kg/h (15-100mesh).

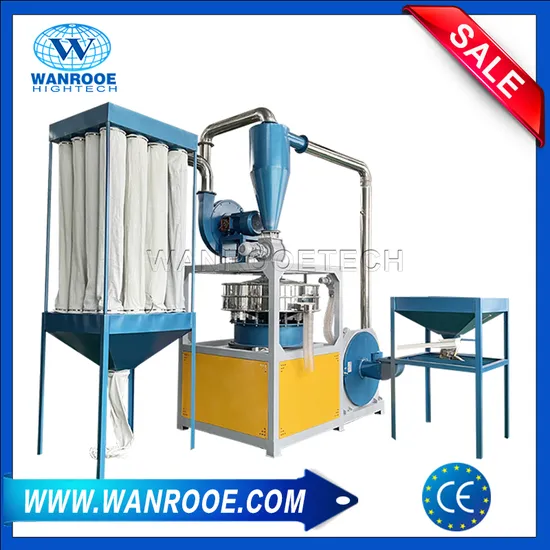

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Technical Features:
1. PNMP Pulverizer can easy to grind all kinds Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces labors intensity of operating workers.
4. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
5. The mill use the water and wind double cooling system ,Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Using Well-known brand accessories, such as Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Technical Parameters:

Model	PNMP-500	PNMP-600	PNMP-800	PNMP-1000
Grinding Disc Diameter(mm)	500	600	800	1000
Main Motor Power(kw)	37-45	45-55	75-90	9-110
Vibrating Sieve Power(kw)	0.75	0.75	0.75	1.1
Capacity(kg/h)	100-300	200-500	300-800	400-900
Dimension L*W*H(mm)	3500x1300x3700	3700x1450x3700	4300x1700x4000	5000x2000x4300
