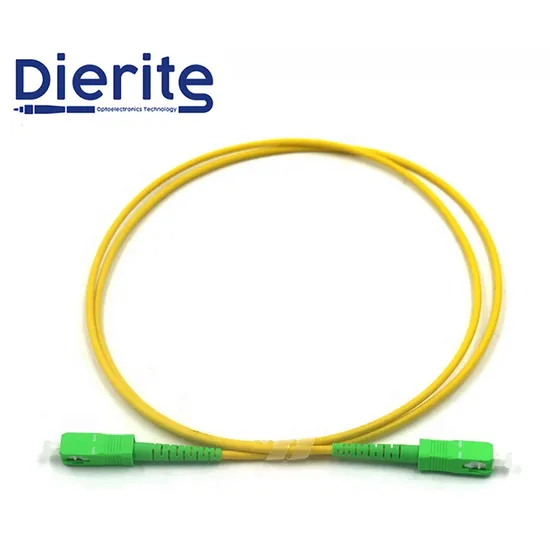

Assurance Normal Singlemode Simplex OS2 LC Sc FC St Fiber Optic Patch Cord

Product Description

Normal Singlemode simplex OS2 LC SC FC ST fiber optic patch cord
Product Parameters
Technical parameters

Characteristic	Item		Test condition	Single mode fiber	Multimode Fiber
Optical property	Insertion Loss (dB)	UPC	1.31μm,LED	≤0.2dB	≤0.4dB
		APC		≤0.3dB	≤0.4dB
	Return Loss (dB)	UPC	1.31μm,LD	≥55dB	≥25dB
		APC		≥65dB	-
Mechanical test	Impulse test		1.8 height, 8 times	<0.1dB	<0.1dB
	Vibration test		10-60Hz, 1mm full amplitude	<0.1dB	<0.1dB
	Plug service life		Above 1000times	<0.1dB	<0.1dB
	Tensile strength		≥50N	<0.1dB	<0.1dB
Environmental property	High temperature test		+85ºC, 96hs	<0.2dB	<0.2dB
	Cryogenic test		-40oC,96hs	<0.2dB	<0.2dB
	Damp heat test		+40°C,90-95%RH,96hs	<0.2dB	<0.2dB

Ordering information

Cable outer diameter		Ψ0.9mm,Ψ1.6mm,Ψ2.0mm,Ψ3.0mm or customer specified
Cable length		1m,3m,5m,15m,25m,30m or customer specified
Fiber type		B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125, OM3=Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5=Maxband*550
Fiber count		Simplex, Duplex
Outer jacket material		PVC,LSZH
Outer jacket color		Refer to Chromatogram
Connector A side	Connector type	LC, SC,ST, FC
	Ferrule type	UPC, APC
Connector B side	Connector type	LC, SC,ST,FC
	Ferrule type	UPC, APC
Marking&package		Per customer's request or factory standard

Product Description
Product profile
Dierite provides various types of fiber optic patch cord. It is composed of a fiber optic cord terminated with different connectors on the ends, with the SC,ST,FC, LC. Patch cables are used for connections to CATV (Cable Televi- sion),telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home), LAN (Local Area Network), FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment. Defense combat readiness, etc.
Characterstic •Low insertion loss, high return loss. •Excellent mechanical endurance. •High credibility and stability. •Good in repeatability and exchangeability.
•100% Insertion, Return Lossz End Face and Interference inspection.

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Our Advantages

Certifications

Company Profile
Jiangsu Dierite Optoelectronics Technology Co.,Ltd. is a professionaloptical fiber cable manufacturer with own R&D center, marketingcenter and production base, located in Changzhou jiangsu China,close to Shanghai and Ningbo port.Our company is committed toprovide first-class solutions and OEM services for operator, systemintegrators and lntegrated wiring provider.Products cover indoorand outdoor fiber optic cable, fiber optic patch cord,PLC splitter,adapter,attenuator,etc. Dierite was established in 2010,now our workshop area is about5000 square meters, and has more than 150 workers. We are also anational high-tech enterprises with ISo 9001,CE,RoHS and manyUtility Model Patent Certificates.Our factory controls the quality constantly and strictly in order to give the best products to the users. Products have been widely used in telecommunications, broadband,and network industry, and are exported to Asia,North America,South America,Europe and other places.As an original manufacturer, we will accelerate the development of the global 5Gera with the most stringent quality and the most competitive price.
