Paint Lacquer Sanding Drum Wide Belt Sander Wood Working Machine

Product Description

Lacquer Sander /Veneer Sanding Machine/Lacquer Sander/ Wide Belt Sander/Segmented Pad Sander
Model SAF1300
Product Description
1.automatic floating, effectively refuse over thick workpiece 2.automatic compensation with maximum c thickness of1mm.3.profile welded frame with manual aging treatment.4.servo motor lifting to achieve the accuracy of 0.01mm.5.central information processing system, each electromagnet segment independently adjusted and controlled6.edge protection 7.scanning distance 16-22mm

Product Parameters

Working Width	60~1300mm
Working Thickness	3~120mm
Working Length	≥300mm
Size of Sanding Belt (W×C)	1330x2500mm
Feeding Speed	7-20m/min
Main Motor Power	15kW.15kW
Working Air Pressure	0.55Mpa
Consumption of Compressed Air	1.5m³/min
Volume of Sucked Air	12000m³/h
Speed of Sucked Air	25m/s
Overall Dimension (L×W×H)	2750x2250x2270mm
Net Weight	5750kg

Configuration

Sanding Unit #1: SEGMENTED PAD
Sanding Unit #2: SEGMENTED PAD
Electrical Parts

Main motors with thermal relay protection; SIMENS PLC MCGS/ SIMENS Touch screen. Main bearing: NSK/TR Pneumatic components AIRTAC (TAIWAN) Optoelctronic switch: BANNER/AB (USA) Safety Protection
3-color caution light; Emergency stop button on both in-feed and out-feed ends; Belt error/pressure error/ feeding error/ protection.
1# SANDING UNIT
·Type: segmented pad
·Motor: 15kw
·Belt Speed : 3-12m/sec (frequency control)
·Adhesive Belt Size:1330x2500mm
2# SANDING UNIT
·Type: segmented pad
·Motor: 15kw
·Belt Speed : 3-12m/sec (frequency control)
·Adhesive Belt Size:1330x2500mm

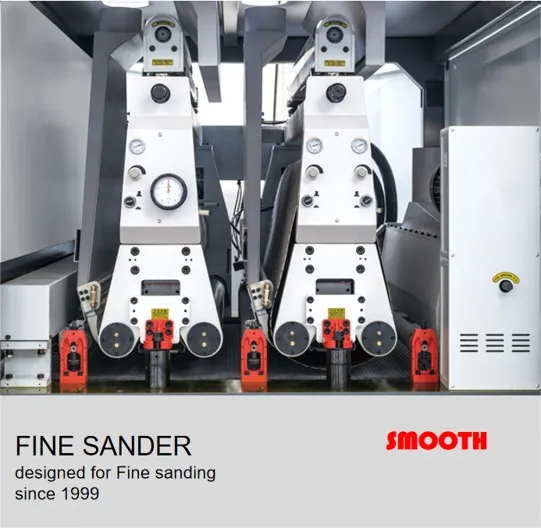

Detailed Photos

You are welcome to contact us for different material sanding technology consulting.
We have done sanding solutions for wooden panels,acoustic panels, metal sheet panels, veneer sheet, PCB boards sanding, furniture,door,flooring,plywood,MDF/HDF, particle boards, etc. manufacturers.
SMOOTH SANDING MACHINE-- MADE IN CHINA
