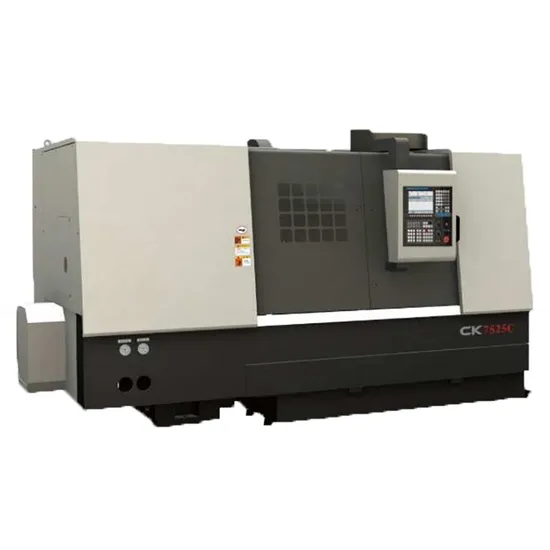

Horizontal CNC Lathe Machine Tool Ck75c, High Precision, Hot Sale, Simple Easy to Use
| US$50,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK75C series
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionCK75C series CNC horizontal lathe is a full-function CNC machine tool with high rigidity, high precision, excellent accuracy retention, high production efficiency, good operability, beautiful appearance and ideal three-leak prevention effect.
The linear guide rail is used in two axes to improve its processing accuracy and high-speed feed performance.
Guangzhou CNC 988 FANUC Oi-TD, Siemens 810D, 802D and other CNC systems to achieve the two-axis control of the machine tool, can turn a variety of internal and external cylindrical surface, conical surface, arc surface, a variety of threads and drilling, expanding, ream, rolling and boring processing.
Product Parameters
| Specifications | |||||
| PARAMETERS | |||||
| ITEMS | UNIT | CK7516C | CK7516G | CK7520C | CK7525C |
| CK7520C/500 | CK7525C/500 | ||||
| Capacity | |||||
| Max. swing over bed | mm | Φ400 | Φ400 | Φ500 | Φ550 |
| Max. swing over slide | mm | Φ180 | Φ240 | Φ240 | Φ280 |
| Max. turning length | mm | 400 | 400 | 750/500 | 1000/500 |
| Max. turning dia. | mm | Φ285 | Φ285 | Φ370 | Φ450 |
| Max. bar dia. | mm | Φ42 | Φ42 | Φ51 | Φ73 |
| Spindle | |||||
| Hydraulic chuck dia. | mm | Φ165 | Φ165 | Φ210 | Φ254 |
| Spindle nose (GB/T5900.1) | A2-5 | A2-5 | A2-6 | A2-8 | |
| Spindle thru-hole | mm | Φ57 | Φ57 | Φ62 | Φ87 |
| Spindle speeds | r/min | 55-5500 | 55-5500 | 40-4000 | 30-3000 |
| Power of main motor(cont./30min) | kW | 11/15 | 11/15 | 11/15 | 15/18.5 () |
| 18.5/22 () | |||||
| Tailstock | |||||
| Dia./travel of tailstock quill | mm | Φ70/80 | Φ70/80 | Φ90/100 | Φ100/100 |
| MT No. | 4/2 | 4/2 | 5/4 | 5/4 | |
| Taper of center of standard/live spindle structure | |||||
| Feeds | |||||
| Slant angle | DEG | 45° | 45° | 45° | 45° |
| X/Z travel | mm | 165/410 | 165/410 | 210/780 | 250/1010 |
| 210/550 | 250/550 | ||||
| X/Z rapid traverse rate | m/min | 30/24 | 16/20 | 24/32 | 24/24 |
| 24/24 | |||||
| Turret | |||||
| Number of stations | 12/8 | 12/8 | 12/8 | 12/8 | |
| Tool size (tuming/boring) | mm | 20x20/Φ32 | 20x20/Φ32 | 25x25/Φ40 | 25x25/Φ40 |
| Others | |||||
| Power supply | kVA | 35 | 35 | 35 | 50 |
| Dimensions (L×W×H) | mm | 2370×1670×1710 | 2370×1670×1710 | 3730×1990×1880 | 3785×1850×1930 |
| 2940×1850×1850 | |||||
| Net weight | kg | 3000 | 3000 | 4500 | 5000 4800 |
Detailed Photos
Equipped with a variety of
multi-station brick tower tool rest
High precision through hole spindle structure
Machine with high rigidity linear guide
