Aluminum sliding window Australian standard

Product Description

Product Description
Product Description

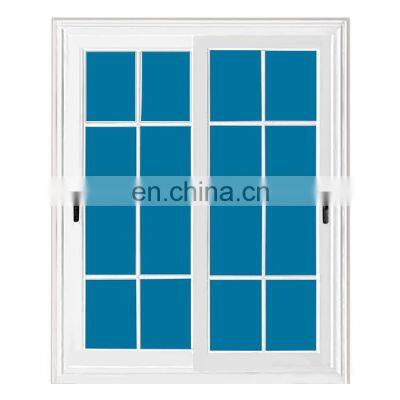

Sliding Window
1. Safety .
low explosive rate of glass
High quality float glass,reasonable design,exquisite making craft lower the explosive rate greatly.
2.Envirnomental and energy saving
The low U value and thermal break aluminum alloy makes the insulating glass more energy saving.
3.Comfort
Comfortable handles are designed according to human body mechanics.
4.Space saving
It needn’t to open inward saving the inside space.

Specification
Item Name	Sliding Window (YYBrand)
Aluminum Profile	Top-grade thermal break
	Standard non-thermal break
	1.4mm 2.0mm thickness for windows
	2.0mm thickness for doors
Dimension	can be customized
Surface Treatment	Powder coating(smooth surface/mat surface) thickness:60microns
	Electrophoresis
	Anodizing thickness:20microns
	Heat transfer for wood grain
	PVDF
colors	can be chosen for different color
Glass Detail	Single Glass: 3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
	Double Glass: 5+6A+5 5+9A+5 5+12A+5 6+12A+6 6+1.14PVB+6 8+1.52PVB+8 ……
	Triple Glass: 5+6A+5+6A+5 5+9A+5+9+5 6+12A+6+1.14PVB+8 10+12A+10+1.52PVB+10 ……
	Glass Type: Tinted Glass/Blue Glass/Grey Glass/Obscure Glass / Low-E Glass(single silver,double silver ,three silver)/Frosted Glass/Ceramic fritted Glass /Screen Printing Glass / Switchable Glass/ Laminated Glass/ Double Glazed Glass(Insulating Glass,Hollow Glass) /Ultra large Glass/Single Perspective Glass/Irregular Glass/Hyperbolic Glass/Glass with Multiple Radiuses/Anti-bullet Glass/ Fire Proof Glass
	also can be fixed with aluminum grid or blind
Material	Hardware: German Siege,GEZE,ROTO;Austrila Doric Chinese top brand KinLong
	Silicone Weather Sealent: Dow Corning
Package	Iron Pallet+Plywood Board
Delivery Time	about30days,depends on order's quantity and production arrangement
Warranty	10 year

Product Effect Diagram
YY Home Production
All products must be inspected and qualified before loading
Packaging
Packing Steps:
Step 1.Protective tape protects frames from scratches;
Step 2.Keep windows fixed on iron pallets;
Step 3.Tie up windows on the iron pallets with plastic belts;
Step 4.PE films keep windows away from sea water;
Step 5.Fill in the space between each two iron pallets by air bags;
Step 6.Tie up iron pallets in container with plastic belts.
Our packages will ensure the windows arrive at project jobsite in good conditions.
YY Home Insatllation
Certifications
Projects
FAQ
Q:What is your advantage of your company compared with others?
YY:Not only do we produce high quality products,but also we offer the service of drawing suggestion, formula optimization to reduce budgets while meeting customer's needs and construction guidance based on decades of experiences of projects.
Q: Are you a Manufacturer or a Trading company?
YY: YY is the manufacturer for doors & windows, Locate in SHANGHAI where is only 30 mins away PUDONG International airport, welcome to inspect YY factory.
Q:How to install your windows? Is there any difference as Local?Do you have installers or send installation team to Project site?
YY: YY Team know well the windows/Doors installation for Brick wall, brick venner, steel construction, concrete wall. We can provide you installation solution or installation guide.
More,we have a oversea manager in Sydney Australia who can assist you to complete installation.
And we can send our installation team to project site if it is necessary.
Q :What about your packages ? What can you do for me If the windows were damaged when I open the container ?
YY: Our Package are with Iron pallets which is stronger and durable.
If the windows were damaged when you received,Please send us photo and we will replace you new one freely.
