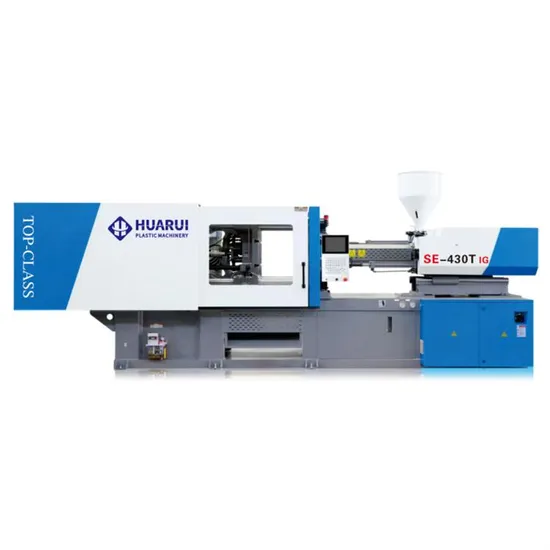

Plastic Crate Making Machine 430ton Full Automatic Horizontal Injection Molding Machine for Plastic Turnover Box Production

Plastic Crate Making Machine 430ton Full Automatic Horizontal Injection Molding Machine for Plastic Turnover Box Production

US$55,000.00-58,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-430T IG
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
727/810cm³/Sec
Weight
17000 Kg
Ejector Force
120 kN
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
4.6*1.2*1.9m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Automatic Plastic Molded Chair Making Machine Injection Blow Mold Moulding Machine
Product Parameters
Se-430T/IG Plastic Injection Molding Machine Information
Item Unit A B
Screw diameter mm 90 95
Theoretical shot volume cm³ 2640 2942
Shot weight (PS) g 3564 3972
Shot weight (PS) oz 1927 2148
Length/Diameter ratio L/D 19.6 18.5
Injection pressure Bar 1283 1152
Injection rate cm³/sec 727 810
Max.screw speed rpm 180
Clamping force KN 4300
Max.daylight mm 1100*1070
Open stroke mm 760
Space Between Tie-bars mm 770*720
Min mould dimension mm 280
Mould thickness range mm 800
Ejector force KN 120
Ejector stroke mm 220
No.of ejector pins unit 13
Max.motor power KW 61
System pressure MPa 175
Heater input power KW 36
Oil filling capacity L 500
Machine size M 8.0*2.0*2.7
Net weight KG 17000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
